SCRJ push-pull coupling
1405206
Official DistributorSKU
PHX1405206
MPN
VS-PPC-J-1-SCRJ-MNBK
Weight
0.113 kg
Series VS-PPC-J

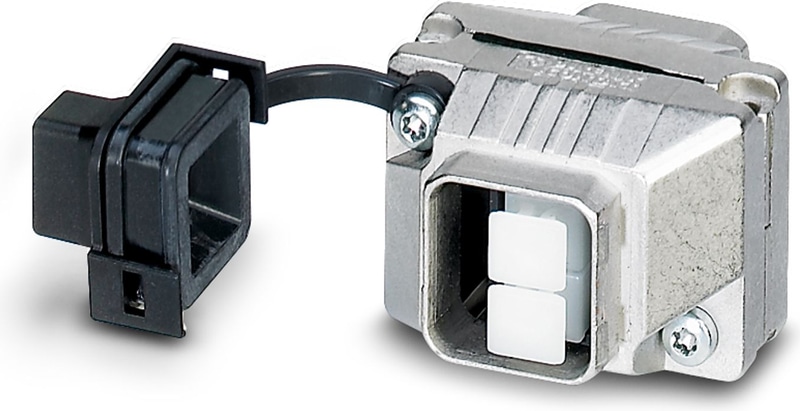

VS-PPC-J-1-SCRJ-MNBK - Fiber optic coupling
SC-RJ push-pull coupling, IP65, metal, with protective cover, color: nickel-plated
Technical Specifications
Product properties
| Type | SC-RJ |
| Sensor Type | Ethernet |
| Number of Positions | 2 |
| Connection profile | SCRJ |
| Cable outlet | straight |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 2 |
Electrical properties
| Rated surge voltage | 0.8 kV |
| Attenuation | 0.2 dB (acc. to IEC 61300-3-4) |
| Insulation resistance | ≥ 500 MΩ |
| Nominal current IN | 0.5 A |
| Transmission medium | FO |
Connection technology
| Connection Method | Coupling |
Mechanical characteristics
| Ferrule diameter | 2.50 mm |
Material specifications
| Color | silver |
| Material | Metal |
| Flammability rating according to UL 94 | V0 |
| Housing Material | Metal |
| Housing surface material | metal-plated |
| Contact surface material | Gold |
Cable/line
| Cable Type | Fiber optics |
| Resistance to Oil | yes |
| Flame resistance | yes |
FO cable
| Number of fibers | 2 |
| Fiber type | GOF, PCF, POF |
Mechanical data
| Insertion/withdrawal cycles | >= 500 |
Characteristics
| Attenuation | 0.2 dB (acc. to IEC 61300-3-4) |
Ambient conditions
| Degree of Protection | IP65/IP67 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Ambient temperature (assembly) | 0 °C ... 50 °C |
| Resistance to Oil | yes |
Standards and Regulations
| Flame resistance | yes |
| Resistance to Oil | yes |
