Power H distributor
Official DistributorSKU
MPN
VS-PPC-J-4X-1227
Weight
0.132 kg
Series VS-PPC-J

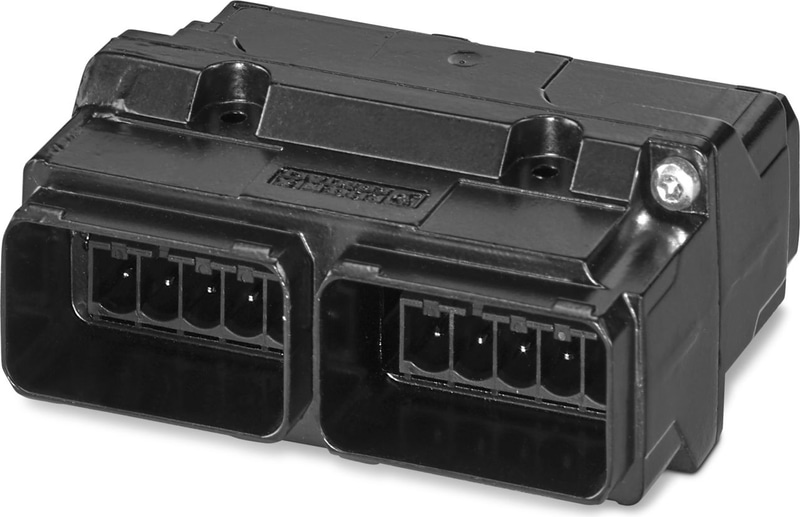

VS-PPC-J-4X-1227 - Power distributor
Power distributor, degree of protection: IP65, number of positions: 5, material: Metal, connection method: Coupling, cable outlet: straight, color: black, Universal
Technical Specifications
Notes
| General | This product corresponds to the PROFINET Cabling and Interconnection Technology Guideline for PROFINET regulations, version 2.00, order no: 2.252, Chapter 11 Connectors for 24 Volt Power Supply Cabling and Chapter 13 Application specific Cabling and Interconnection Technology (AIDA) |
Product properties
| Type | Version 14 |
| Sensor Type | Universal |
| Number of Positions | 5 |
| Connection profile | Power |
| Number of slots | 4 |
| Cable outlet | straight |
Insulation characteristics
| Degree of pollution | 2 |
Electrical properties
| Rated voltage (II/2) | 630 V |
| Rated voltage (III/2) | 400 V |
| Rated voltage (III/3) | 24 V |
| Rated voltage (III/3) | 250 V |
| Rated surge voltage (II/2) | 4 kV |
| Rated surge voltage (III/2) | 4 kV |
| Rated surge voltage (III/3) | 4 kV |
| Rated current | 16 A (at 20 °C) |
| Rated current | 16 A |
| Nominal voltage UN | 24 V |
| Nominal current IN | 16 A |
| Transmission medium | Copper |
Connection technology
| Connection Method | Coupling |
Dimensions
| Width | 73 mm |
| Height | 35 mm |
| Length | 58 mm |
Material specifications
| Color | black |
| Material | Metal |
| Flammability rating according to UL 94 | V0 |
| Seal material | NBR |
| Housing Material | Metal |
| Contact surface material | Gold over nickel |
| Contact carrier material | PA |
Mechanical data
| Insertion/withdrawal cycles | ≥ 100 |
Ambient conditions
| Degree of Protection | IP65 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Ambient temperature (assembly) | -5 °C ... 55 °C |
Mounting
| Mounting Type | Screw mounting |
| Assembly instructions | When mounting the device on a level surface, use the VS-PPC-J-M mounting foot |
Why Proax for Phoenix Contact 1405387?
Proax is an authorized distributor of Phoenix Contact 1405387 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 10 |
