Official DistributorSKU
MPN
VS-ASI-J-Y-B-FFKDS
Weight
0.028 kg

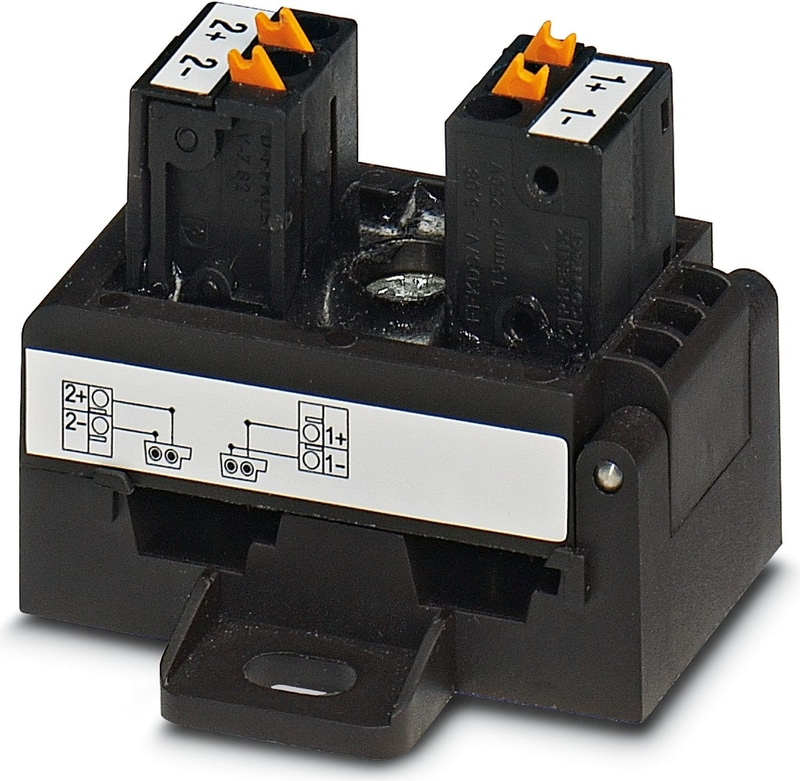

VS-ASI-J-Y-B-FFKDS - Distributor
AS-Interface distributor with IP20 degree of protection for two flat-ribbon conductors, with spring-cage terminal blocks for four litz wires up to 1.5 mm2
Technical Specifications
Product properties
| Number of Positions | 4 |
Insulation characteristics
| Overvoltage category | III |
| Degree of pollution | 3 |
Electrical properties
| Nominal voltage UN | ≤ 35 V DC |
| Nominal current IN | 6 A |
| Transmission medium | Copper |
Connection technology
| Connection Method | AS-i penetration technique |
Interfaces
| Bus system | AS-Interface |
Signaling
| Status display | No |
| Status display present | No |
Connection 1
| Type | Load center AS-i Screw locking |
| Number of Positions | 4 |
| Locking Type | Screw locking mechanism |
| Material | CuZn (Contact) |
| Material | Ni/Au (Contact surface) |
| Material | TPE-U (Contact carriers) |
| Material | PA-GF (Housing) |
| Material | Stainless steel (Screw connection) |
| Tightening torque | 1.65 Nm (Locking screw) |
Connection 2
| Type | Spring-cage terminal block straight |
| Number of Positions | 4 |
| Material | CuSn (Contact) |
| Material | tin-plated (Contact surface) |
| Material | PA (Contact carriers) |
Cable/line
| Stripping length of the individual wire | 10 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 75 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Why Proax for Phoenix Contact 1404498?
Proax is an authorized distributor of Phoenix Contact 1404498 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
