Phoenix Contact 1404508
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
VS-ASI-J-Y-Y-N
Weight
0.022 kg

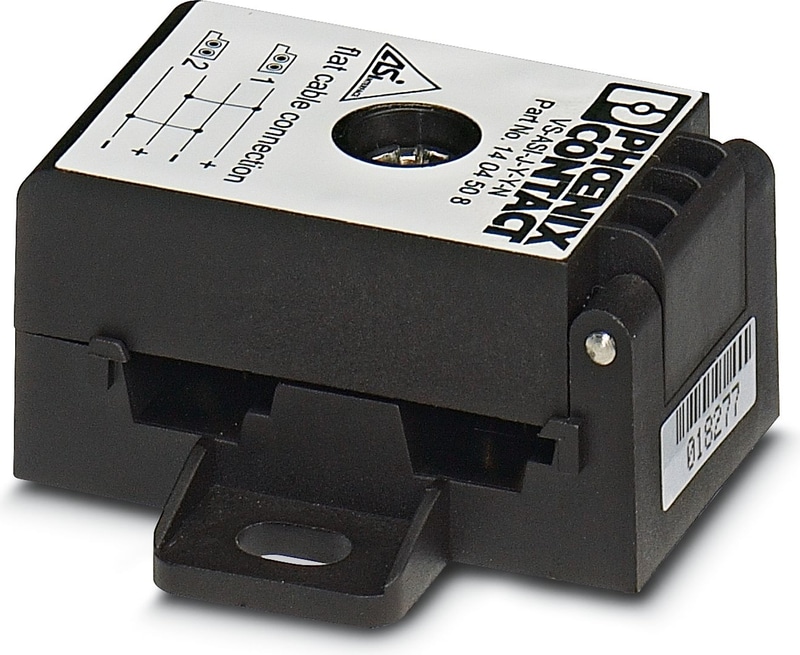

VS-ASI-J-Y-Y-N - Distributor

AS-Interface H distributor with IP65/IP67/IP69k degree of protection, for distribution from one to two flat-ribbon conductors

Technical Specifications

Product properties

Number of Positions4

Insulation characteristics

Overvoltage categoryIII
Degree of pollution3

Electrical properties

Nominal voltage UN≤ 35 V DC
Nominal current IN8 A
Transmission mediumCopper

Connection technology

Connection MethodAS-i penetration technique

Interfaces

Bus systemAS-Interface

Signaling

Status displayNo
Status display presentNo

Connection 1

TypeLoad center AS-i Screw locking
Number of Positions4
Locking TypeScrew locking mechanism
MaterialCuZn (Contact)
MaterialNi/Au (Contact surface)
MaterialTPE-U (Contact carriers)
MaterialPA-GF (Housing)
MaterialStainless steel (Screw connection)
Tightening torque1.65 Nm (Locking screw)

Ambient conditions

Degree of ProtectionIP65
Degree of ProtectionIP67
Degree of ProtectionIP69K
Ambient Temperature (Operation)-25 °C ... 75 °C
Ambient temperature (storage/transport)-25 °C ... 85 °C

Why Proax for Phoenix Contact 1404508?

Proax is an authorized distributor of Phoenix Contact 1404508 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.

Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!

Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
Pack Size1
