Official DistributorSKU
MPN
VS-ASI-J-Y-N-SWA-LC
Weight
0.025 kg
This product is Not Cancellable/Not Returnable
VS-ASI-J-Y-N-SWA-LC - Distributor

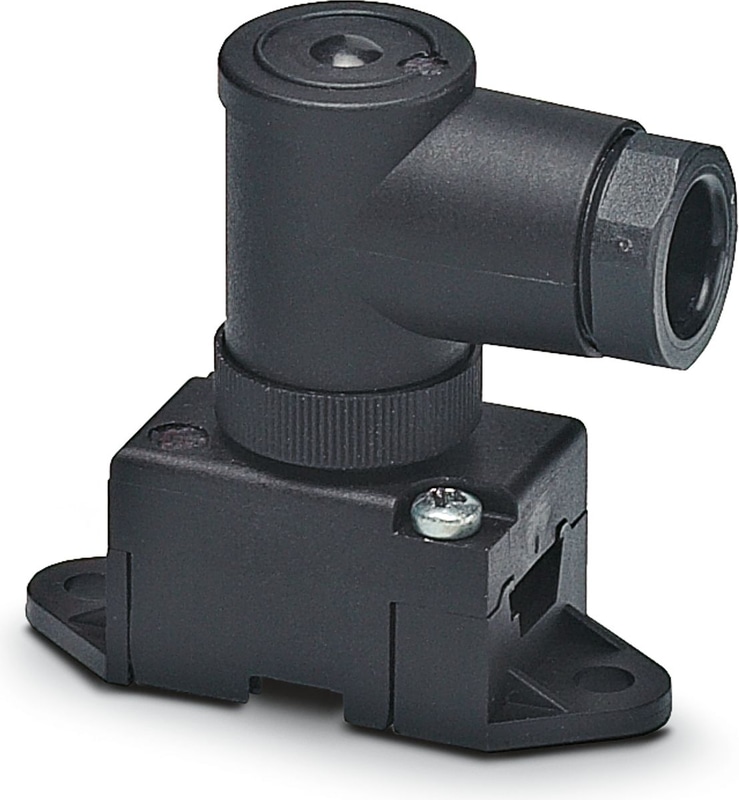

AS-Interface distributor with IP67 protection for 1 flat-ribbon conductor, 2-pos., with screw connection, angled
Technical Specifications
Product properties
| Number of Positions | 2 |
| Thread type | Pg9 |
Insulation characteristics
| Degree of pollution | 3 |
Electrical properties
| Nominal voltage UN | 30 V DC |
| Nominal current IN | 4 A |
| Transmission medium | Copper |
Connection technology
| Connection Method | AS-i penetration technique |
| Outside diameter | 4 mm ... 6 mm |
Interfaces
| Bus system | AS-Interface |
Signaling
| Status display | No |
| Status display present | No |
External dimensions
| Outside diameter | 4 mm ... 6 mm |
Material specifications
| Material Housing | PA |
| Seal material | Neoprene |
| Seal material | FKM |
Connection 1
| Type | Load center AS-i Screw locking |
| Number of Positions | 2 |
| Locking Type | Screw locking mechanism |
| Material | CuZn (Contact) |
| Material | Sn (Contact surface) |
| Material | PA (Contact carriers) |
| Material | PA (Housing) |
Connection 2
| Type | Screw terminal block angled |
| Number of Positions | 2 |
| Material | CuZn (Contact) |
| Material | CuSnZn (Contact surface) |
| Material | PA (Contact carriers) |
Cable/line
| Stripping length of the individual wire | 5 mm |
Ambient conditions
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 70 °C |
| Ambient temperature (storage/transport) | -25 °C ... 70 °C |
Accessories
