Phoenix Contact 1404430
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
VS-ASI-J-Y-N-PUR-1,0-M12FS SCO
Weight
0.066 kg

VS-ASI-J-Y-N-PUR-1,0-M12FS SCO - Distributor

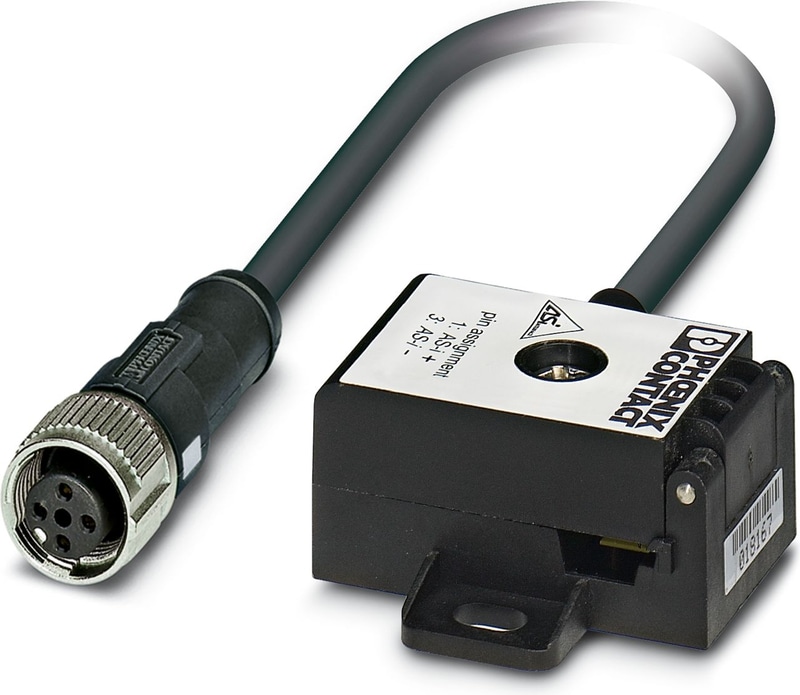

AS-Interface distributor with IP67 protection for one flat-ribbon conductor, with 1.0 m PUR round conductor and a molded, straight, A-coded, 2-pos. M12 SPEEDCON socket

Technical Specifications

Product properties

Number of Positions2
CodingA

Insulation characteristics

Overvoltage categoryII
Degree of pollution3

Electrical properties

Nominal voltage UN≤ 35 V DC
Nominal current IN4 A
Transmission mediumCopper

Connection technology

Connection MethodAS-i penetration technique

Interfaces

Bus systemAS-Interface

Signaling

Status displayNo
Status display presentNo

Connection 1

TypeLoad center lateral AS-i Screw locking
Number of Positions2
Locking TypeScrew locking mechanism
MaterialCuZn (Contact)
MaterialNi/Au (Contact surface)
MaterialTPE-U (Contact carriers)
MaterialPA-GF (Housing)
MaterialStainless steel (Screw connection)
Tightening torque1.65 Nm (Locking screw)

Connection 2

TypeSocket straight M12 SPEEDCON
Number of Positions2 (5)
Locking TypeSPEEDCON
MaterialCuSn (Contact)
MaterialNi/Au (Contact surface)
MaterialTPU GF (Contact carriers)
MaterialTPU (Grip)
MaterialZinc die-cast, nickel-plated (Screw connection)
Insertion/withdrawal cycles≥ 100
Tightening torque0.4 Nm

Cable/line

Cable Length1 m

PUR halogen-free black [PUR]

Cable weight30 kg/km
UL AWM style20549 / 10493 (80°C/300 V)
Number of Positions4
Shieldedno
Cable TypePUR halogen-free black [PUR]
Conductor structure signal line42x 0.10 mm
AWG Signal Line22
Conductor Cross Section4x 0.34 mm²
Wire diameter incl. insulation1.27 mm ±0.02 mm
External Cable Diameter4.70 mm ±0.15 mm
Outer sheath, materialPUR
External sheath, colorblack-gray RAL 7021
Conductor materialBare Cu litz wires
Material wire insulationPP
Single wire, colorbrown, white, blue, black
Thickness, insulation≥ 0.21 mm
Thickness, outer sheathapprox. 0.80 mm
Overall twist4 wires, twisted
Max. conductor resistance≤ 58 Ω/km
Insulation resistance≥ 1 GΩ*km
Nominal voltage, cable≤ 300 V
Test voltage≥ 3000 V
Minimum bending radius, fixed installation5 x D
Minimum bending radius, flexible installation10 x D
Smallest bending radius, fixed installation23.5 mm
Smallest bending radius, movable installation47 mm
Max. bending cycles4000000
Flexible cable conduit capableyes
Halogen-freein accordance with DIN VDE 0472 part 815
Halogen-freein accordance with DIN EN 50267-2-1
Flame resistanceaccording to UL 758/1581 (horizontal)
Flame resistancein accordance with UL 758/1581 FT2
Resistance to Oilin accordance with DIN EN 60811-2-1
Other resistanceHighly resistant to acids, alkaline solutions and solvents
Other resistancehydrolysis and microbe resistant
Other resistancepartly UV-resistant (in accordance with DIN EN ISO 4892-2-A)
Other resistanceLow adhesion
Other resistanceabrasion-resistant
Special PropertiesFlexible cable conduit capable
Special PropertiesSilicone-free
Special PropertiesFree of substances which would hinder coating with paint or varnish
Special Propertiesflexible
Ambient Temperature (Operation)-40 °C ... 80 °C (cable, fixed installation)
Ambient Temperature (Operation)-25 °C ... 80 °C (Cable, flexible installation)

Ambient conditions

Degree of ProtectionIP65
Degree of ProtectionIP67
Ambient Temperature (Operation)-25 °C ... 75 °C
Ambient Temperature (Operation)-25 °C ... 75 °C (cable, fixed installation)
Ambient Temperature (Operation)-5 °C ... 75 °C (Cable, flexible installation)
Ambient temperature (storage/transport)-25 °C ... 80 °C

Standards and Regulations

Standard designationM12 connector
Standards/specificationsIEC 61076-2-101
