Official DistributorSKU
MPN
VS-ASI-FC-SEAL-HP
Weight
0.008 kg
This product is Not Cancellable/Not Returnable

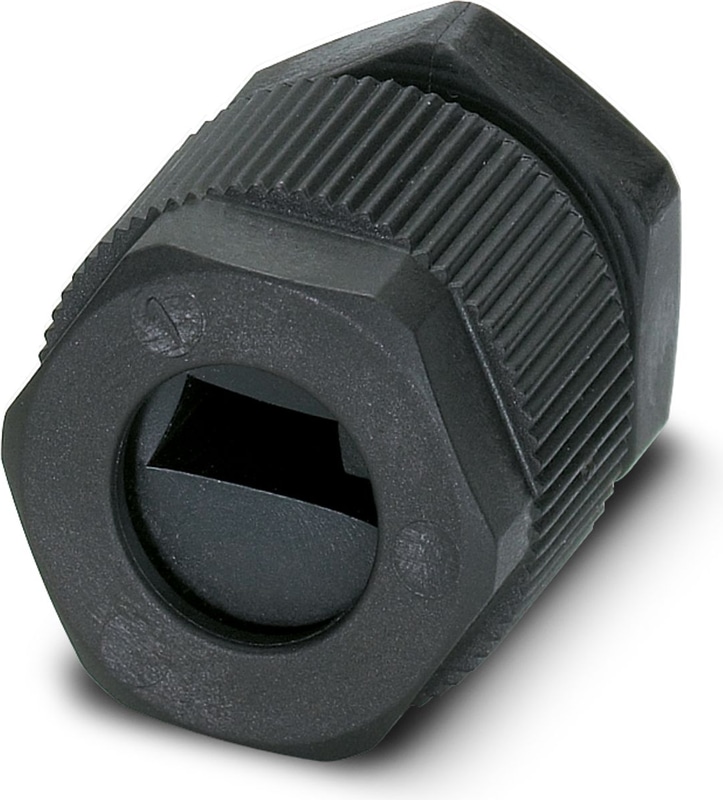

VS-ASI-FC-SEAL-HP - Seal
End sealing for AS-Interface flat-ribbon conductor, can be used on both sides, IP67 degree of protection:
Technical Specifications
Dimensions
| Width | 22 mm |
| Depth | 22 mm |
| Length | 36 mm |
| Wrench size, union nut | 19 mm |
| Wrench size, support | 19 mm |
Material specifications
| Material | PA |
| Seal material | NBR |
Ambient conditions
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -20 °C ... 70 °C |
Why Proax for Phoenix Contact 1400374?
Proax is an authorized distributor of Phoenix Contact 1400374 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
