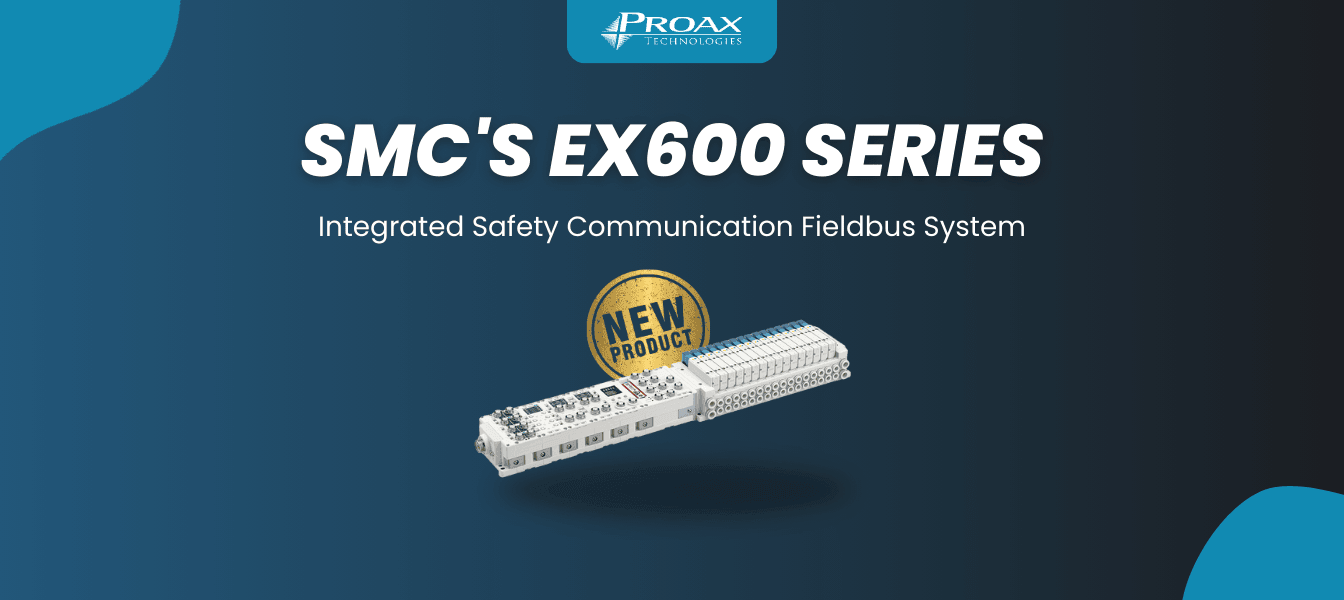

SMC's new EX600 Series Safety Communication Fieldbus System combines safety and general-purpose I/O into one manifold, addressing the complexity of managing separate systems in industrial automation. This system supports EtherNet/IP™ and CIP Safety™ protocols while meeting IEC 61508/IEC 62061 SIL3 and ISO 13849 PL e safety standards. As an elite distributor of SMC, Proax is proud to offer this innovative solution to our customers.
Key Features
Unified Integration
Safety and general-purpose I/O modules work together in the same manifold, reducing footprint and simplifying wiring.
Advanced Safety Output
Three dedicated safety outputs with redundant safety switches (24V and 0V sides) provide continuous diagnostic monitoring. If an abnormality is detected, the system automatically transitions to a safe state.
Flexible Safety Input
Connect up to 16 safety devices like residual pressure exhaust valves, position sensors, and laser curtains with two configuration options:
- Single Input (1oo1): 16 Safety Inputs (SIL2, PL d)
- Dual Input (1oo2): 8 Safety Inputs (SIL3, PL e)
Direct Configuration
Configure the system directly on the Fieldbus module without requiring a PLC or PC, streamlining setup and maintenance.
Safety Certifications
The EX600 Series is certified by TÜV SÜD and complies with functional safety standards IEC 61508/IEC 62061 SIL 3 and ISO 13849-1 PL e. This certification ensures the system meets the highest safety integrity levels for industrial applications.
SIL (Safety Integrity Level) - Defined by international standard IEC 61508/IEC 62061, with safety levels from SIL 1 to 4, where SIL 1 is the lowest and SIL 4 is the highest.
PL (Performance Level) - Specified by international standard ISO 13849, with safety levels from PL a to PL e, where PL a is the lowest and PL e represents the highest safety function capability.
Available Models
| Model | Safety Inputs | Safety Outputs | Max. Solenoids | Compatible Valve Series |
|---|---|---|---|---|
| EX600-FV□1 | 16 | 1 for valves, 2 for external devices | 32 | JSY, SY, VQC |
| EX600-FV□2 | 16 | 1 for valves, 2 for external devices | 128 | JSY3000-L/P, IITV23 |
System Components
Fieldbus Module: Handles network communication with built-in display for local monitoring and configuration.
Safety Input/Output Module: Manages safety-critical functions while maintaining international safety standard compliance.
General Purpose I/O Module: Handles standard digital operations with up to 9 modules configurable in any order.
Frequently Asked Questions
Is it possible to mount a terminating resistor to an SI unit?
Yes, you can mount a terminating resistor to an SI unit. For detailed instructions, refer to the operation manual on the SMC website. The SI unit part number (EX□-□) is determined by your valve manifold model - check the valve catalog for corresponding SI unit part numbers.
What is the correspondence between the SI unit output number and the valve coil?
The output number refers to the D-side solenoid position on the manifold, starting at zero. When the A/B piping port faces you, the D side is on your left. For standard double solenoid manifolds, output numbers are assigned from A side to B side. Single valves leave the B side output empty. For special wiring specification manifolds, check the individual specification sheet.
Have More Questions or Ready to Order?
The EX600 Series will be available on our website shortly. If you have additional questions about the system or would like to place an order, contact our team today for expert guidance on configuration options for your specific application.
