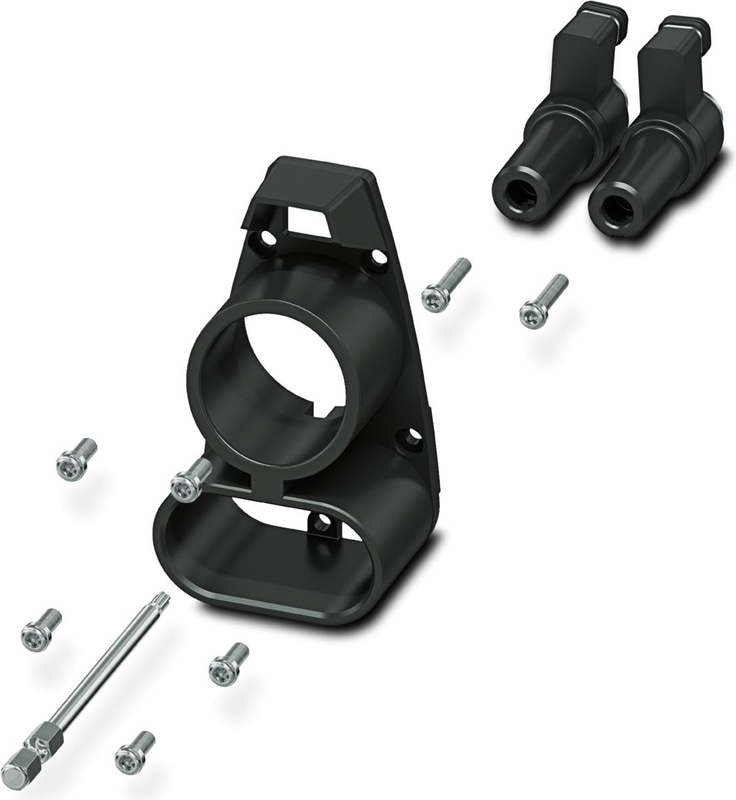

CHARX connect standard, Repair kit, Accessories, with DC contact holder with integrated front part of the DC contacts, with replaceable mating face frame, with 5x M4X10 flat-head screws with Torx safety drive (IPR TORX PLUS), with special bit (867/4 IPR TORX PLUS® bit, 20 IPR x 89 mm) for insulated screwdriver, for replacement of the mating face frame of vehicle charging connectors, CCS type 1, IEC 62196-3, SAE J1772, Screw mounting, housing: black, The vehicle connector housing does not have to be opened in order to replace the mating face frame.
- Complete product range
- Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
- Maintenance-friendly replacement of the mating face frame without draining the coolant
Notes
| General | The vehicle connector housing does not have to be opened in order to replace the mating face frame. |
Product properties
| Product family | CHARX connect standard |
| Application | for replacement of the mating face frame of vehicle charging connectors |
| Type | Accessories |
| Design | with DC contact holder with integrated front part of the DC contacts |
| Design | with replaceable mating face frame |
| Design | with 5x M4X10 flat-head screws with Torx safety drive (IPR TORX PLUS) |
| Design | with special bit (867/4 IPR TORX PLUS® bit, 20 IPR x 89 mm) for insulated screwdriver |
| Technology | Combined Charging System |
| Charging standard | CCS type 1 |
| Charging mode | Mode 4 |
Material specifications
| Color (Housing) | black (9005) |
| Material (Housing) | Plastic |
Ambient conditions
| Ambient Temperature (Operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Standards
| Standards/regulations | IEC 62196-3 |
| Standards/regulations | SAE J1772 |
Mounting
| Mounting Type | Screw mounting |
Why Proax for Phoenix Contact 1158266?
Proax is an authorized distributor of Phoenix Contact 1158266 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Pack Size | 1 |
