1624143
Official DistributorSKU
PHX1624143
MPN
EV-T1CCS-PARK
Weight
0.171 kg
This product is Not Cancellable/Not Returnable
Series EV-T

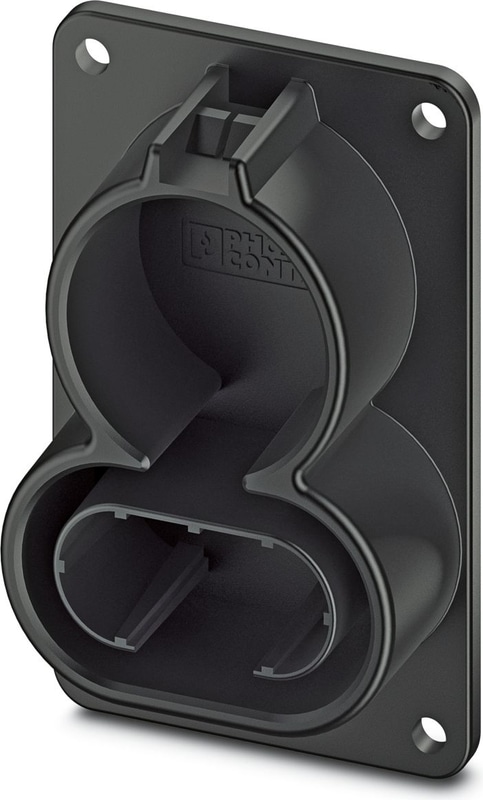

EV-T1CCS-PARK - Charging connector holder
CHARX connect, Charging connector holder, Accessories, for vehicle charging connectors on charging stations (EVSE), CCS type 1, SAE J1772, Front mounting, housing: black
- Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
- Individual branding, thanks to the use your own logo
Technical Specifications
Product properties
| Product family | CHARX connect |
| Application | for vehicle charging connectors on charging stations (EVSE) |
| Type | Accessories |
| Charging standard | CCS type 1 |
| Charging mode | Mode 4 |
Dimensions
| Width | 75 mm |
| Height | 118 mm |
| Depth | 37.5 mm |
| Bore dimensions | 60 mm x 103 mm |
Material specifications
| Color (Housing) | black (9005) |
| Material (Housing) | Plastic |
| Flammability rating according to UL 94 | V0 () |
Mechanical properties
| Securing | With actuation lever |
| Removal | Lever actuation and removal |
Ambient conditions
| Degree of Protection | IP54 (plugged in) |
| Ambient Temperature (Operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Standards
| Standards/regulations | SAE J1772 |
Mounting
| Mounting type Charging connector holder | Front mounting (0° ... 45° frontal inclination possible) |
| Mounting hole diameter | 6.00 mm (ø) |
Why Proax for Phoenix Contact 1624143?
Proax is an authorized distributor of Phoenix Contact 1624143 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
