1624153
Official DistributorSKU
PHX1624153
MPN
EV-T2CCS-PARK
Weight
0.183 kg
Series EV-T

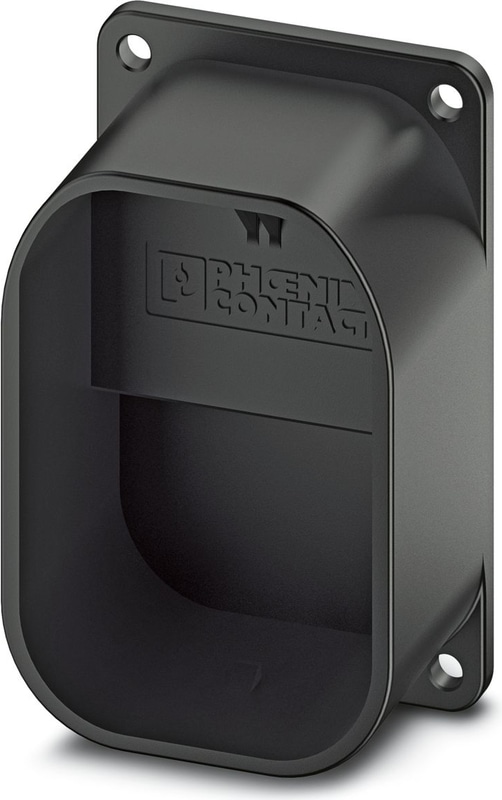

EV-T2CCS-PARK - Charging connector holder
CHARX connect standard, Charging connector holder, Accessories, for vehicle charging connectors on charging stations (EVSE), CCS type 2, IEC 62196-3, Front mounting, housing: black, Item is not compatible with the HPC CCS type 2 charging cable from Phoenix Contact.
Technical Specifications
Notes
| Note on application | Item is not compatible with the HPC CCS type 2 charging cable from Phoenix Contact. |
Product properties
| Product family | CHARX connect standard |
| Application | for vehicle charging connectors on charging stations (EVSE) |
| Type | Accessories |
| Technology | Combined Charging System |
| Charging standard | CCS type 2 |
| Charging mode | Mode 4 |
Dimensions
| Bore dimensions | 60 mm x 103 mm |
Material specifications
| Color (Housing) | black (9005) |
| Color (Handle area) | gray (7042) |
| Color (Mating face) | black (9005) |
| Color (Protective cap) | black (9005) |
| Color (Cable) | black (9005) |
| Flammability rating according to UL 94 | V0 () |
Mechanical properties
| Securing | With locking clips for locking contour |
| Removal | Lifting and removal |
Ambient conditions
| Degree of Protection | IP54 (plugged in) |
| Ambient Temperature (Operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Standards
| Standards/regulations | IEC 62196-3 |
Mounting
| Mounting type Charging connector holder | Front mounting (0° ... 45° frontal inclination possible) |
| Mounting hole diameter | 6.00 mm (ø) |
Why Proax for Phoenix Contact 1624153?
Proax is an authorized distributor of Phoenix Contact 1624153 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
