1624148
Official DistributorSKU
PHX1624148
MPN
EV-T2AC-PARK
Weight
0.137 kg
Series EV-T

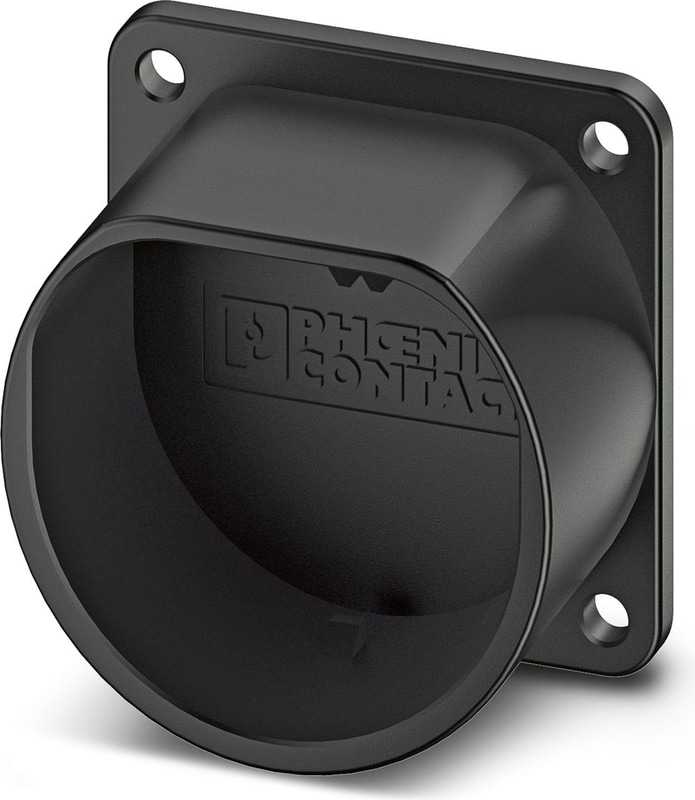

EV-T2AC-PARK - Charging connector holder
CHARX connect, Charging connector holder, Accessories, for vehicle charging connectors on charging stations (EVSE), Type 2, IEC 62196-2, Front mounting, housing: black, PHOENIX CONTACT logo
- Developed and produced in accordance with the IATF 16949 automotive standard and ISO 9001
- Individual branding, thanks to the use your own logo
Technical Specifications
Product properties
| Product family | CHARX connect |
| Application | for vehicle charging connectors on charging stations (EVSE) |
| Type | Accessories |
| Affixed logo | PHOENIX CONTACT logo |
| Charging standard | Type 2 |
| Charging mode | Mode 3 |
Dimensions
| Width | 75 mm |
| Height | 75 mm |
| Depth | 44.7 mm |
| Bore dimensions | 60 mm x 60 mm |
Material specifications
| Color (Housing) | black (9005) |
| Material (Housing) | Plastic |
| Flammability rating according to UL 94 | V0 () |
Mechanical properties
| Securing | With locking clips for locking contour |
| Removal | Lifting and removal |
Ambient conditions
| Degree of Protection | IP54 (plugged in) |
| Ambient Temperature (Operation) | -30 °C ... 50 °C |
| Ambient temperature (storage/transport) | -40 °C ... 80 °C |
Standards
| Standards/regulations | IEC 62196-2 |
Mounting
| Mounting type Charging connector holder | Front mounting (0° ... 45° frontal inclination possible) |
| Mounting hole diameter | 6.00 mm (ø) |
Why Proax for Phoenix Contact 1624148?
Proax is an authorized distributor of Phoenix Contact 1624148 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
