2701153
Official DistributorSKU
PHX2701153
MPN
NLC-MOD-RTC
Weight
0.039 kg
This product is Not Cancellable/Not Returnable

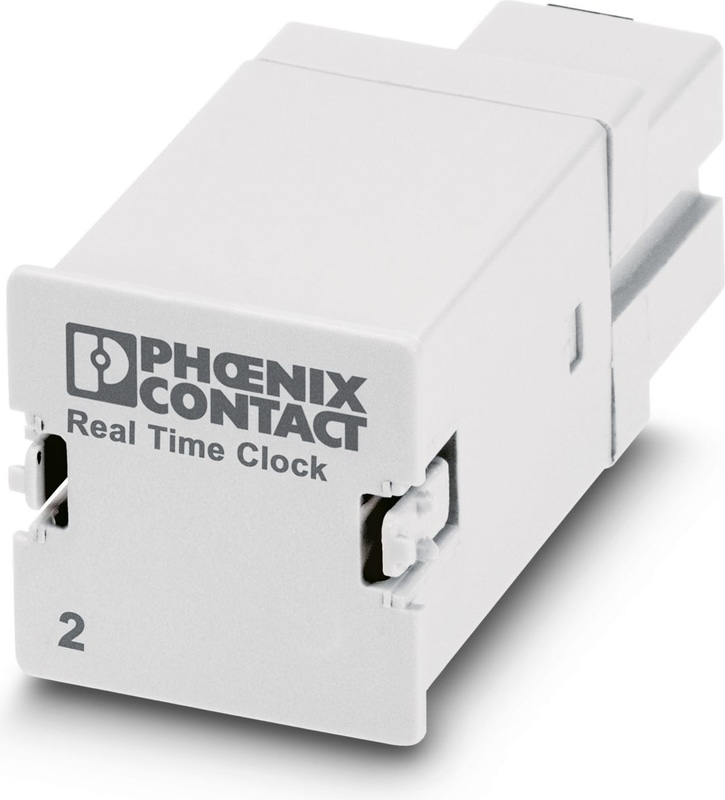

NLC-MOD-RTC - Option module
Real-time clock
- Optional on NLC-050... base units, standard on NLC-055... base units
- Allows time and date comparisons within a project
- Can be set via operator panel or nanoNavigator
- Supports month-day-year, day-month-year, and year-month-day formats
Technical Specifications
Supply
| Supply Voltage | 24 V DC (Power available via logic module) |
| Max. current consumption | 10 mA |
| Typical current consumption | 4 mA |
Real-time clock
| Realtime Clock | Yes (battery-backed) |
| Description realtime clock | 2 s/day at 25 °C 4.5 s/day overall (60ºC) Life 5 years |
Realtime Clock
| Connection Method | Slot 2 |
Dimensions
| Width | 24.5 mm |
| Height | 25.5 mm |
| Depth | 49 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
| Permissible humidity (operation) | 90 % |
Why Proax for Phoenix Contact 2701153?
Proax is an authorized distributor of Phoenix Contact 2701153 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
