2701179
Official DistributorSKU
PHX2701179
MPN
NLC-MOD-RS232
Weight
0.042 kg
Series NLC-MOD-RS

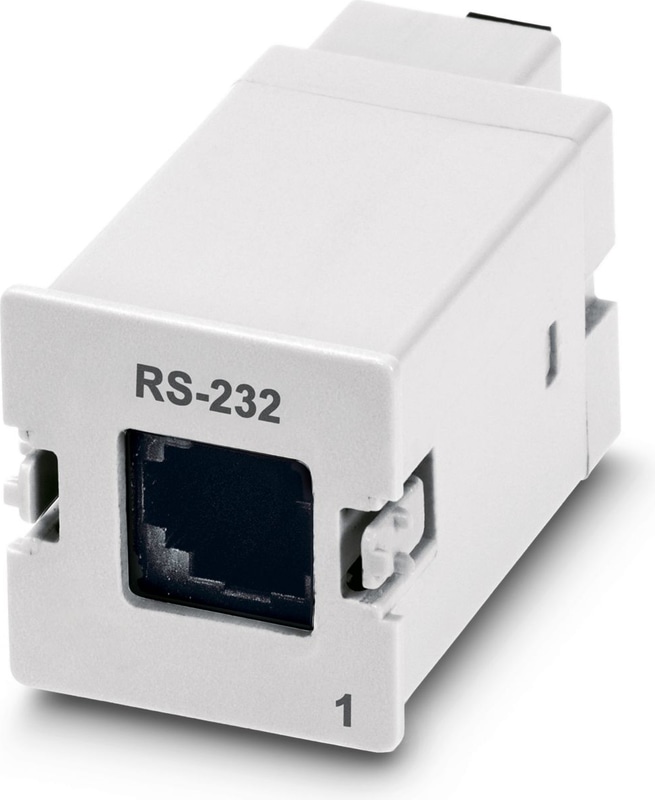

NLC-MOD-RS232 - nanoLC module
RS-232 connection for data transfer or software configuration
- Watchdog timer monitors communication, providing either a warning or fault
- Password control can limit access: read-only or read/write
- Serial modules provide a PC connection for configuration purposes and downloading/uploading projects to a basic unit
- All I/O points, registers, flags, timers, counters, and system flags can be read and written remotely and independently of the program. This enables Nanoline to be used as a simple Modbus I/O block.
Technical Specifications
Product properties
| Product family | Nanoline |
Supply
| Supply Voltage | 24 V DC (Power available via logic module) |
| I/O voltage | 24 V |
| Max. current consumption | 18 mA |
| Typical current consumption | 10 mA |
Slot 1
| Connection Method | Installs in slot 1 of logic module |
Interfaces
| Stop bits | 1 or 2 |
Data
| Serial transmission speed | 115.2 kbps |
RS-232
| Connection Method | RJ11, shielded |
| Transmission length | 4 m (bei 115 kBaud) |
Dimensions
| Width | 24.5 mm |
| Height | 25.5 mm |
| Depth | 49 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Why Proax for Phoenix Contact 2701179?
Proax is an authorized distributor of Phoenix Contact 2701179 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
