2701195
Official DistributorSKU
PHX2701195
MPN
NLC-MOD-USB
Weight
0.041 kg
This product is Not Cancellable/Not Returnable

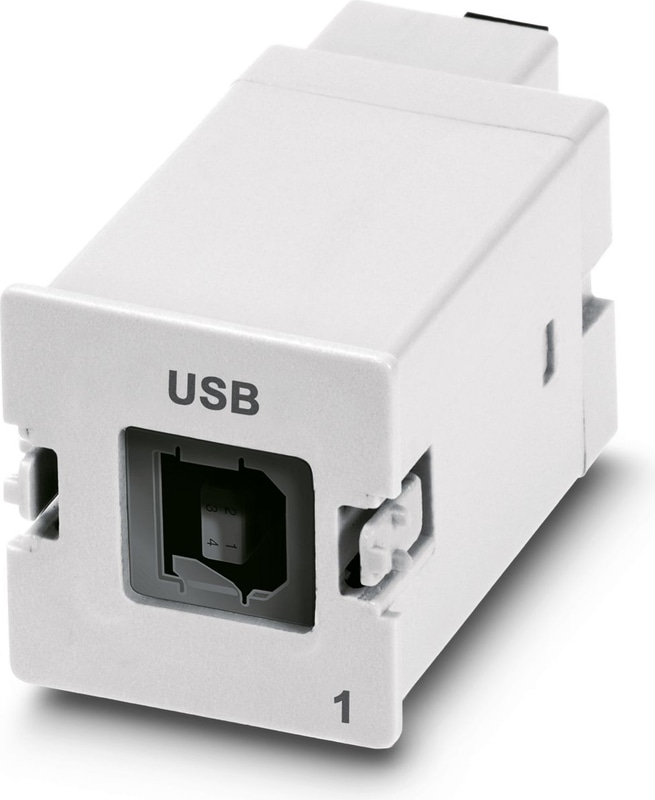

NLC-MOD-USB - nanoLC module
Serial connection to PC's USB port for data transfer or software configuration
- Watchdog timer monitors communication, providing either a warning or fault
- Password control can limit access: read-only or read/write
- Serial modules provide a PC connection for configuration purposes and downloading/uploading projects to a basic unit
- All I/O points, registers, flags, timers, counters, and system flags can be read and written remotely and independently of the program. This enables Nanoline to be used as a simple Modbus I/O block.
Technical Specifications
Product properties
| Product family | Nanoline |
Supply
| Supply Voltage | 24 V DC (Power available via logic module) |
| I/O voltage | 24 V |
| Max. current consumption | 18 mA |
| Typical current consumption | 10 mA |
Slot 1
| Connection Method | Installs in slot 1 of logic module |
Interfaces
| Stop bits | 1 or 2 |
Data
| Serial transmission speed | 115.2 kbps |
USB
| Connection Method | USB Type B |
| Transmission length | 2 m |
Dimensions
| Width | 24.5 mm |
| Height | 25.5 mm |
| Depth | 49 mm |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
