2701182
Official DistributorSKU
PHX2701182
MPN
NLC-MOD-RS485
Weight
0.039 kg
This product is Not Cancellable/Not Returnable
Series NLC-MOD-RS

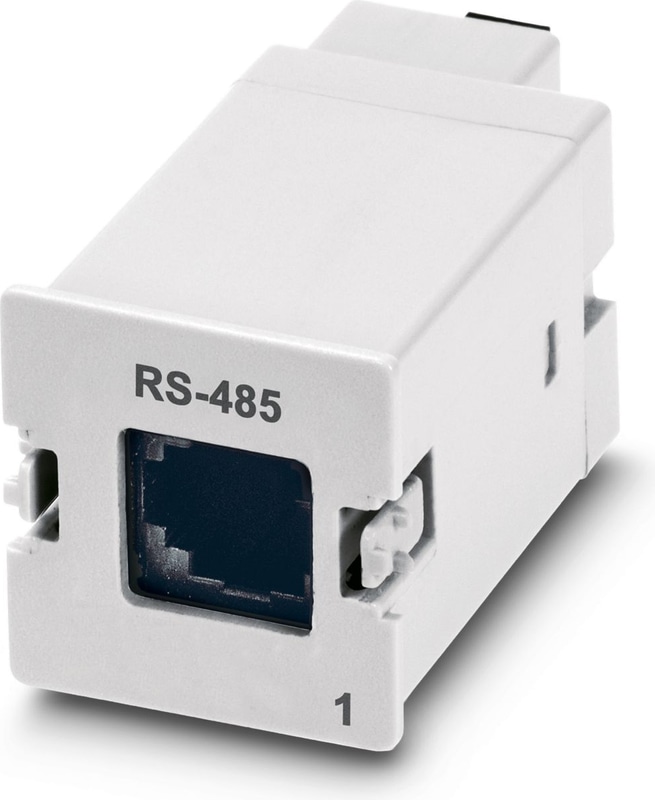

NLC-MOD-RS485 - Option module
RS-485 connection for data transfer or software configuration
- Password control can limit access: read-only or read/write
- Watchdog timer monitors communication, providing either a warning or fault
- All I/O points, registers, flags, timers, counters, and system flags can be read and written remotely and independently of the program. This enables Nanoline to be used as a simple Modbus I/O block.
- Serial modules provide a PC connection for configuration purposes and downloading/uploading projects to a basic unit
Technical Specifications
Supply
| Supply Voltage | 24 V DC (Power available via logic module) |
| I/O voltage | 24 V |
| Max. current consumption | 18 mA |
| Typical current consumption | 10 mA |
Slot 1
| Connection Method | Installs in slot 1 of logic module |
Interfaces
| Stop bits | 1 or 2 |
Data
| Serial transmission speed | 115.2 kbps |
| Connection Method | RJ11, shielded |
RS-232
| Connection Method | RJ11, shielded |
Dimensions
| Width | 24.5 mm |
| Height | 25.5 mm |
| Depth | 49 mm |
Ambient conditions
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -25 °C ... 85 °C |
Why Proax for Phoenix Contact 2701182?
Proax is an authorized distributor of Phoenix Contact 2701182 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
