3240572
Official DistributorSKU
PHX3240572
MPN
AI-WM 2,5-8 BU
Weight
0 kg
Series AI-WM

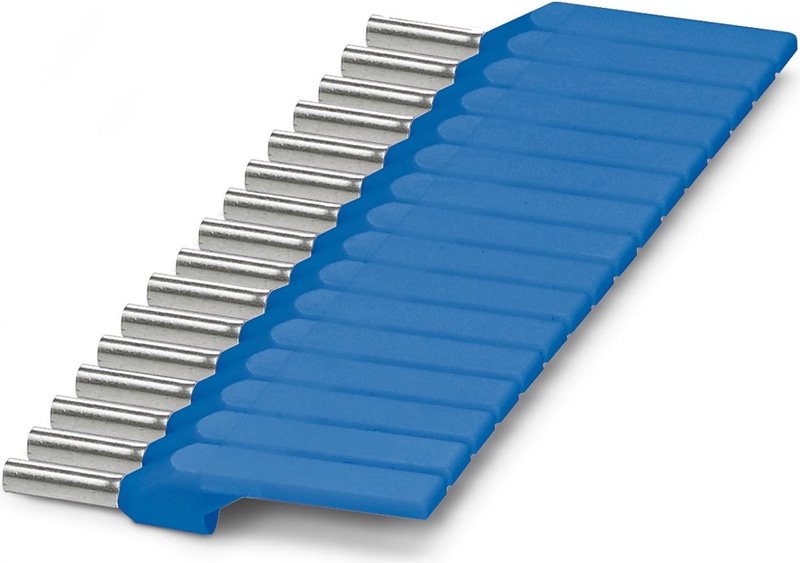

AI-WM 2,5-8 BU - Ferrule
Ferrule with insulating collar that can be labeled, 2.5 mm2, can be labeled with BLUEMARK, color-coded blue
- Electrogalvanized
- Ferrules made from electrolytic copper
- Highly resistant and optimum printing quality thanks to modern UV printing technology
- Crimping and marking in one step
- Ferrules can be labeled with BLUEMARK
Technical Specifications
Dimensions
| Width | 5.5 mm |
| Sleeve length | 8 mm |
| Ferrule diameter | 2.6 mm |
| Sleeve wall thickness | 0.15 mm |
| Inner dimensions of the insulating collar | 4.2 mm |
Internal dimensions
| Internal diameter | 2.3 mm |
Material specifications
| Color | blue |
| Material | E-CU |
| Flammability rating according to UL 94 | HB |
| Coating | tin-plated (galvanic) |
| Components | free from silicone and halogen |
Cable/line
| External Cable Diameter | = 1.90 mm |
Technical data
| Sleeve length | 8 mm |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 120 °C |
| Permanent temperature | 105 °C (-40 °C no load / 0 °C dynamic load) |
| Short-term temperature | 120 °C |
Accessories
CRIMPFOX 6 - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.25 mm2 ... 6.0 mm2, lateral entry, trapezoidal crimp
CRIMPFOX 6S-F - Crimping pliers, for ferrules without insulating collar according to DIN 46228 Part 1 and ferrules with insulating collar according to DIN 46228 Part 4, 0.5 mm2 ... 6 mm2, front entry, square crimp
