Phoenix Contact 2702255
AllMeasurement & MonitoringMonitoring ProductsRemote control
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN

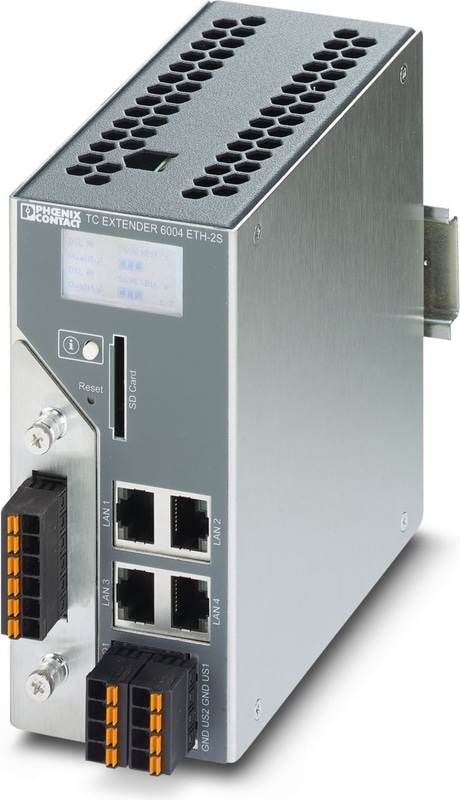

TC EXTENDER 6004 ETH-2S
Weight
0.8 kg

TC EXTENDER 6004 ETH-2S - Ethernet extenders

Managed Ethernet extender, point-to-point, line and ring structures, data rates up to 30 Mbps, distances of up to 20 km on in-house copper cables, replaceable surge protection, 2 SHDSL ports, 4-port switch, diagnostics via display and Ethernet

  • Distances up to 20 km
  • Up to 15.3 Mbps in 2-wire operation
  • Up to 30 Mbps in 4-wire operation
  • Robust modulation method (SHDSL)
  • Automatic topology and data rate detection
  • Transparent transmission of all standard Ethernet protocols, including EtherNet/IP™, Modbus/TCP, PROFINET, PROFIsafe, EtherCAT®, KNX, BACnet/IP
  • Network transparent (no IP configuration required)
  • Automatic detection of network cable type (auto MDI(X))
  • Easy startup, plug and play
  • 2 digital outputs for alerting external controllers
  • Remote diagnostics via IP and automatic event messages via SNMP
  • Use in point-to-point, line, and ring topologies with managed and unmanaged Ethernet extenders
  • Integrated surge protection of the SHDSL interface
  • Virtually separate critical IP networks with VLAN
  • Increase availability through RSTP redundancy
Technical Specifications

Utilization restriction

CCCex noteUse in potentially explosive areas is not permitted in China.

Product properties

MTTF506 Years (SN 29500 standard, temperature 25°C, operating cycle 21%)
MTTF260 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%)
MTTF110 Years (SN 29500 standard, temperature 40°C, operating cycle 100%)

Functionality

Basic FunctionsEthernet extenders in accordance with ITU-T G.991.2

Electrical properties

Electrical isolationVCC // Ethernet // DSL (A) // DSL (B) // FE
Maximum power dissipation for nominal condition4.8 W
Mains typePermanent line
Test voltage data interface/power supply500 V AC (In accordance with EN/IEC 60079-7, observe the limitations in the specific conditions of use.)
Test voltage data interface/power supply1.5 kV AC (50 Hz, 1 min.)

Supply

Supply Voltage Range10 V DC ... 60 V DC
Nominal Supply Voltage24 V DC ±5 %
Typical current consumption200 mA (24 V DC)
Typical current consumption90 mA (60 V DC)
Typical current consumption450 mA (10 V DC)

Function

Status and diagnostic indicatorsDisplay for warning, status and device information

Signal

Output nameDigital output
Number of Outputs2
Voltage output signal10 V DC ... 60 V DC (24 V DC, depending on the operating voltage)
Current Output Signal≤ 500 mA (Short-circuit-proof)

Supply

Connection MethodPush-in spring connection

Interfaces

SignalEthernet
Web serveryes
Basic FunctionsEthernet extenders in accordance with ITU-T G.991.2

Data: Ethernet interface, 10/100Base-T(X) in accordance with IEEE 802.3

Serial transmission speed10/100 Mbps, auto negotiation
Connection MethodRJ45 jack, shielded
Connection Method4 ports 10/100BaseT(X), auto negotiation and autocrossing
No. of channels4
Transmission length< 100 m (shielded twisted pair)
Protocols SupportedIPv4, IPv6, TCP/IP, HTTP, HTTPS
Auxiliary protocolsARP, DHCP (Client), PING, SNMP

Data: SHDSL interface according to ITU-T G.991.2.bis

Serial transmission speed4-wire operation: 64 kbps ... 30 Mbps
Serial transmission speed2-wire operation: 32 kbps ... 15.3 Mbps
Connection MethodPush-in spring connection
No. of channels2 (2-wire operation)
Transmission length< 20 km (Depending on data rate and cable cross section)
Single conductor/terminal point, rigid0.2 mm² ... 1.5 mm²
Single-wire/terminal point, flexible0.2 mm² ... 2.5 mm²
Single-wire/terminal point, rigid AWG max.16
Single-wire/terminal point, rigid AWG min.24

Dimensions

Width60 mm
Height130 mm
Depth160 mm

Material specifications

Material (Housing)Aluminum

Ambient conditions

Degree of ProtectionIP20
Ambient Temperature (Operation)-25 °C ... 60 °C
Ambient Temperature (Operation)-25 °C ... 0 °C (Display inactivity can occur, image changes may take several seconds)
Ambient Temperature (Operation)55 °C ... 60 °C (Display contrast can deteriorate)
Ambient temperature (storage/transport)-40 °C ... 85 °C
Altitude≤ 2500 m (For restrictions, see the manufacturer's declaration for altitude operation)
Max. permissible relative humidity (operation)< 60 % (At an ambient operating temperature >70 °C)
Permissible humidity (operation)10 % ... 95 % (non-condensing)
Permissible humidity (storage/transport)10 % ... 95 % (non-condensing)

CE

CertificateCE-compliant

ATEX

Identification II 3 G Ex ec IIC T4 Gc
CertificatePxCIF16ATEX2702253X
NotePlease follow the special installation instructions in the documentation!

UKEX

Identification II 3 G Ex ec IIC T4 Gc
CertificatePxCIMA22UKEX2702253X

UL, USA/Canada

Identification508 Listed

Corrosive gas test

IdentificationISA-S71.04-1985 G3 Harsh Group A

EMC data

Electromagnetic compatibilityConformance with EMC Directive 2014/30/EU

Electrostatic discharge

Standards/regulationsEN 61000-4-2
Contact discharge± 6 kV
Discharge in air± 8 kV
Indirect discharge± 6 kV
CommentsCriterion B

Electromagnetic HF field

Standards/regulationsEN 61000-4-3
Frequency Range80 MHz ... 3 GHz
Field intensity10 V/m
CommentsCriterion A

Fast transients (burst)

Standards/regulationsEN 61000-4-4
Input± 2 kV
Signal± 2 kV
CommentsCriterion B

Surge current load (surge)

Standards/regulationsEN 61000-4-5
Input± 0.5 kV (Symmetrical, unshielded supply line)
Input± 1 kV (Asymmetrical, unshielded supply line)
Output± 1 kV (asymmetrical, unshielded)
Signal± 1 kV (asymmetrical, shielded Ethernet cable)
Signal± 4 kV (asymmetrical: line to ground, unshielded SHDSL cable)
Signal± 2 kV (symmetrical: line to line, unshielded SHDSL cable)
CommentsCriterion B

Conducted interference

Standards/regulationsEN 61000-4-6
Frequency Range0.15 MHz ... 80 MHz
CommentsCriterion A
Voltage10 V

Emitted interference

Standards/regulationsEN 55011
CommentsClass A, industrial applications

Criteria

Criterion ANormal operating behavior within the specified limits.
Criterion BTemporary impairment to operational behavior that is corrected by the device itself.

Standards and Regulations

Standards/regulationsEN 50121-4

Mounting

Mounting TypeDIN rail: 35 mm
Assembly instructionsThe product can be snapped onto all 35 mm DIN rails in accordance with EN 60715.
Accessories
  • Phoenix Contact2702258
    2702258
    Surge protection plug - TC EXTENDER PT-IQ-2S
  • Phoenix Contact2881007
    2881007
    Surge protection in accordance with Class EA (CAT6A), for Gigabit Ethernet (up to 10 Gbps), token ring, FDDI/CDDI, ISDN, and DS1. Suitable for Power over Ethernet (PoE++ / 4PPoE) “Mode A” and “Mode B”. RJ45 attachment plug with separate grounding cable and ground connection snap-on foot for NS 35 DIN rails.
  • Phoenix Contact2891246
    2891246
    Port Guard Security Element - FL PATCH SAFE CLIP
  • Phoenix Contact2832263
    2832263
    Patch cable - FL CAT5 PATCH 0,5
  • Phoenix Contact2832580
    2832580
    FL CAT5 PATCH 5,0 - Patch cable, CAT5, assembled, 5 m
  • Phoenix Contact2744827
    2744827
    FL CAT5 HEAVY CONF/ - CAT5-SF/UTP cable (J-02YS(ST)C HP 2 x 2 x 24 AWG), heavy-duty installation cable, 2 x 2 x 0.22 mm2, solid conductor, shielded, outer sheath: 7.8 mm diameter, inner sheath: 5.75 mm ± 0.15 mm diameter, preassembled on both sides with RJ45 plug, crossover or line
  • Phoenix Contact2866983
    2866983
    Power supply unit - MINI-SYS-PS-100-240AC/24DC/1.5
  • Phoenix Contact2988146
    2988146
    SD FLASH 512MB - Program and configuration memory, plug-in, 512 Mbyte.
  • Phoenix Contact2702409
    2702409
    Modem - TC EXTENDER 2001 ETH-2S
  • Phoenix Contact1656725
    1656725
    VS-08-RJ45-5-Q/IP20 - RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 8, 1 Gbps, CAT5, material: Plastic, connection method: Insulation displacement connection, connection cross section: AWG 26- 23, cable outlet: straight, color: traffic grey A RAL 7042, Ethernet
