2702253
Official DistributorSKU
PHX2702253
MPN
TC EXTENDER 4001 ETH-1S
Weight
0.752 kg
Series TC-EXTENDER

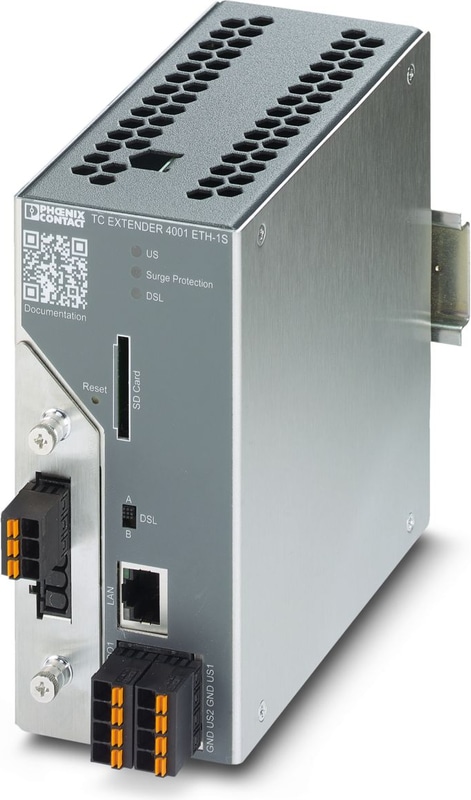

TC EXTENDER 4001 ETH-1S - Ethernet extenders
Managed Ethernet extender, point-to-point connections, data rates up to 15.3 Mbps, distances of up to 20 km on in-house copper cables, replaceable surge protection, 1 SHDSL port, 1 LAN port, diagnostics via Ethernet
- Distances up to 20 km
- Up to 15.3 Mbps in 2-wire operation
- Robust modulation method (SHDSL)
- Automatic topology and data rate detection
- Transparent transmission of all standard Ethernet protocols, including EtherNet/IP™, Modbus/TCP, PROFINET, PROFIsafe, EtherCAT®, KNX, BACnet/IP
- Network transparent (no IP configuration required)
- Easy startup, plug and play
- Alarm and signal output
- Remote diagnostics via IP and automatic event messages via SNMP
- Integrated surge protection of the SHDSL interface
- Use in point-to-point connections with managed and unmanaged Ethernet extenders
- Virtually separate critical IP networks with VLAN
- Increase availability through RSTP redundancy
Technical Specifications
Utilization restriction
| CCCex note | Use in potentially explosive areas is not permitted in China. |
Product properties
| MTTF | 577 Years (SN 29500 standard, temperature 25°C, operating cycle 21%) |
| MTTF | 300 Years (SN 29500 standard, temperature 40°C, operating cycle 34.25%) |
| MTTF | 128 Years (SN 29500 standard, temperature 40°C, operating cycle 100%) |
Functionality
| Basic Functions | Ethernet extenders in accordance with ITU-T G.991.2 |
Electrical properties
| Electrical isolation | VCC // Ethernet // DSL (A/B) // FE |
| Mains type | Permanent line |
| Test voltage data interface/power supply | 500 V AC (In accordance with EN/IEC 60079-7, observe the limitations in the specific conditions of use.) |
| Test voltage data interface/power supply | 1.5 kV AC (50 Hz, 1 min.) |
Supply
| Supply Voltage Range | 10 V DC ... 60 V DC |
| Nominal Supply Voltage | 24 V DC ±5 % |
| Typical current consumption | 200 mA (24 V DC) |
| Typical current consumption | 80 mA (60 V DC) |
| Typical current consumption | 380 mA (10 V DC) |
Function
| Status and diagnostic indicators | LEDs for warning, status, and device information |
Signal
| Output name | Digital output |
| Number of Outputs | 1 |
| Voltage output signal | 10 V DC ... 60 V DC (24 V DC, depending on the operating voltage) |
| Current Output Signal | ≤ 500 mA (Short-circuit-proof) |
Supply
| Connection Method | Push-in spring connection |
Interfaces
| Signal | Ethernet |
| Web server | yes |
| Basic Functions | Ethernet extenders in accordance with ITU-T G.991.2 |
Data: Ethernet interface, 10/100Base-T(X) in accordance with IEEE 802.3
| Serial transmission speed | 10/100 Mbps, auto negotiation |
| Connection Method | RJ45 jack, shielded |
| Connection Method | 1 port 10/100Base-T(X), auto negotiation |
| No. of channels | 1 |
| Transmission length | < 100 m (shielded twisted pair) |
| Protocols Supported | IPv4, IPv6, TCP/IP, HTTP, HTTPS |
| Auxiliary protocols | ARP, DHCP (Client), PING, SNMP |
Data: SHDSL interface according to ITU-T G.991.2.bis
| Serial transmission speed | 2-wire operation: 32 kbps ... 15.3 Mbps |
| Connection Method | Push-in spring connection |
| No. of channels | 1 (2-wire operation) |
| Transmission length | < 20 km (Depending on data rate and cable cross section) |
| Single conductor/terminal point, rigid | 0.2 mm² ... 1.5 mm² |
| Single-wire/terminal point, flexible | 0.2 mm² ... 2.5 mm² |
| Single-wire/terminal point, rigid AWG max. | 16 |
| Single-wire/terminal point, rigid AWG min. | 24 |
| Stripping length | 10 mm |
Dimensions
| Width | 60 mm |
| Height | 130 mm |
| Depth | 160 mm |
Material specifications
| Material (Housing) | Aluminum |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -25 °C ... 60 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Altitude | ≤ 2500 m (For restrictions, see the manufacturer's declaration for altitude operation) |
| Permissible humidity (operation) | 10 % ... 95 % (non-condensing) |
| Permissible humidity (storage/transport) | 10 % ... 95 % (non-condensing) |
CE
| Certificate | CE-compliant |
ATEX
| Identification | II 3 G Ex ec IIC T4 Gc |
| Certificate | PxCIF16ATEX2702253X |
| Note | Please follow the special installation instructions in the documentation! |
UKEX
| Identification | II 3 G Ex ec IIC T4 Gc |
| Certificate | PxCIMA22UKEX2702253X |
UL, USA/Canada
| Identification | 508 Listed |
Corrosive gas test
| Identification | ISA-S71.04-1985 G3 Harsh Group A |
EMC data
| Electromagnetic compatibility | Conformance with EMC Directive 2014/30/EU |
Electrostatic discharge
| Standards/regulations | EN 61000-4-2 |
| Contact discharge | ± 6 kV |
| Discharge in air | ± 8 kV |
| Indirect discharge | ± 6 kV |
| Comments | Criterion B |
Electromagnetic HF field
| Standards/regulations | EN 61000-4-3 |
| Frequency Range | 80 MHz ... 3 GHz |
| Field intensity | 10 V/m |
| Comments | Criterion A |
Fast transients (burst)
| Standards/regulations | EN 61000-4-4 |
| Input | ± 2 kV |
| Signal | ± 2 kV |
| Comments | Criterion B |
Surge current load (surge)
| Standards/regulations | EN 61000-4-5 |
| Input | ± 0.5 kV (Symmetrical, unshielded supply line) |
| Input | ± 1 kV (Asymmetrical, unshielded supply line) |
| Output | ± 1 kV (asymmetrical, unshielded) |
| Signal | ± 1 kV (asymmetrical, shielded Ethernet cable) |
| Signal | ± 4 kV (asymmetrical: line to ground, unshielded SHDSL cable) |
| Signal | ± 2 kV (symmetrical: line to line, unshielded SHDSL cable) |
| Comments | Criterion B |
Conducted interference
| Standards/regulations | EN 61000-4-6 |
| Frequency Range | 0.15 MHz ... 80 MHz |
| Comments | Criterion A |
| Voltage | 10 V |
Emitted interference
| Standards/regulations | EN 55011 |
| Comments | Class A, industrial applications |
Criteria
| Criterion A | Normal operating behavior within the specified limits. |
| Criterion B | Temporary impairment to operational behavior that is corrected by the device itself. |
Standards and Regulations
| Standards/regulations | EN 50121-4 |
Mounting
| Mounting Type | DIN rail: 35 mm |
| Assembly instructions | The product can be snapped onto all 35 mm DIN rails in accordance with EN 60715. |
Accessories
Surge protection in accordance with Class EA (CAT6A), for Gigabit Ethernet (up to 10 Gbps), token ring, FDDI/CDDI, ISDN, and DS1. Suitable for Power over Ethernet (PoE++ / 4PPoE) “Mode A” and “Mode B”. RJ45 attachment plug with separate grounding cable and ground connection snap-on foot for NS 35 DIN rails.
FL CAT5 HEAVY CONF/ - CAT5-SF/UTP cable (J-02YS(ST)C HP 2 x 2 x 24 AWG), heavy-duty installation cable, 2 x 2 x 0.22 mm2, solid conductor, shielded, outer sheath: 7.8 mm diameter, inner sheath: 5.75 mm ± 0.15 mm diameter, preassembled on both sides with RJ45 plug, crossover or line
VS-08-RJ45-5-Q/IP20 - RJ45 connector, design: RJ45, degree of protection: IP20, number of positions: 8, 1 Gbps, CAT5, material: Plastic, connection method: Insulation displacement connection, connection cross section: AWG 26- 23, cable outlet: straight, color: traffic grey A RAL 7042, Ethernet
