2200965
Official DistributorSKU
PHX2200965
MPN
UM-ALU 4 AU75 L95
Weight
0.086 kg
Series UM-ALU

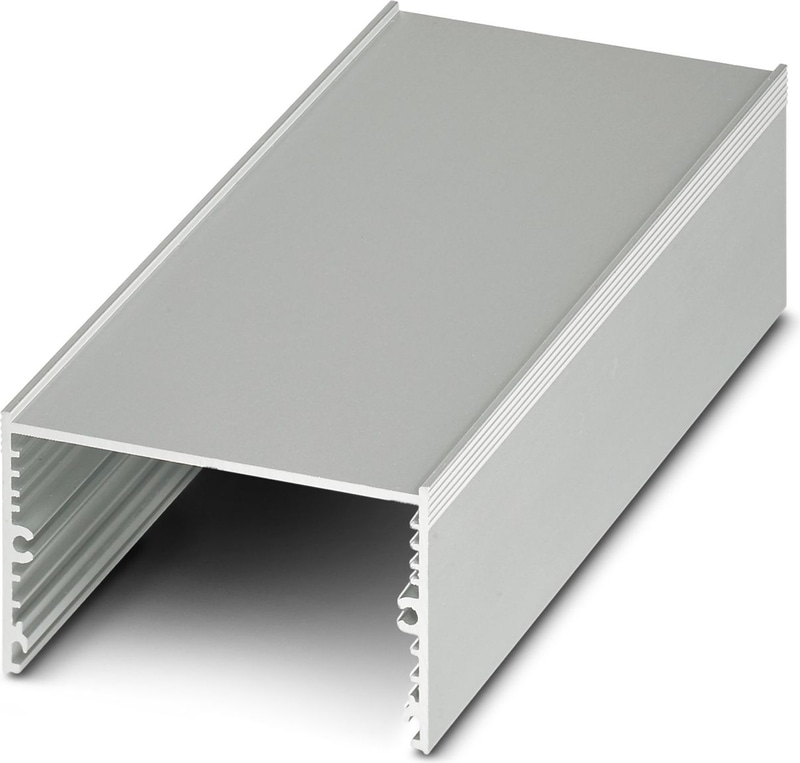

UM-ALU 4 AU75 L95 - Profile cover
Press-drawn section housings, Screw mounting, Profile cover, width: 75.6 mm, profile width (internal): 71.5 mm, profile width (external): 75.6 mm, length: 95 mm, depth: 43.1 mm
- Aluminum extruded profile
- Variety of connection technology
- Can be mounted on the DIN rail
- Available in lengths from 42.5 mm ... 990 mm, can be cut to any length
- Available in overall widths of 75 mm and 105 mm
- EMC protection
Technical Specifications
Product properties
| Housing type | Press-drawn section housings |
| Housing series | UM-ALU |
| Product family | UM-ALU |
| Type | Profile cover |
| Ventilation openings present | no |
Dimensions
| Width | 75.6 mm |
| Depth | 43.1 mm |
| Length | 95 mm |
External dimensions
| Profile width (external) | 75.6 mm |
Internal dimensions
| Profile width (internal) | 71.5 mm |
PCB design
| PCB thickness | 1.44 mm ... 2 mm |
Material specifications
| Color (Housing) | aluminum |
| Housing Material | Aluminum |
| Surface characteristics | anodized |
Ambient conditions
| Max. IP code to attain | IP40 |
| Ambient Temperature (Operation) | -40 °C ... 100 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
PCB data
| Number of PCB holders | 5 |
| Type of PCB mount | Slot |
| PCB surface | 6010 mm² ... 6446 mm² (TOP in conjunction with side elements COVERLID…AL or 4LID…PA) |
| PCB surface | 6010 mm² ... 6446 mm² (BOTTOM in conjunction with side elements COVERLID…AL or 4LID…PA) |
| Thickness of the PCB | 1.44 mm ... 2 mm |
Mounting
| Mounting Type | Screw mounting |
| Mounting Position | parallel to the DIN rail |
Packaging specifications
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
Why Proax for Phoenix Contact 2200965?
Proax is an authorized distributor of Phoenix Contact 2200965 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
