2200951
Official DistributorSKU
PHX2200951
MPN
UM-ALU 4-100,5 COVER AL
Weight
0.039 kg
Series UM-ALU

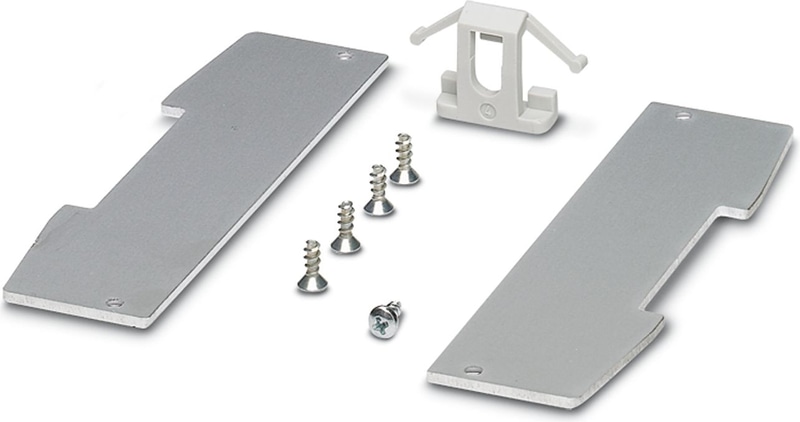

UM-ALU 4-100,5 COVER AL - Lateral element
Press-drawn section housings, Screw mounting, Side elements (left and right) incl. snap-on foot and screws for basic profile, width: 105.4 mm, height: 2 mm, depth: 31 mm
- Aluminum extruded profile
- Variety of connection technology
- Can be mounted on the DIN rail
- Available in lengths from 42.5 mm ... 990 mm, can be cut to any length
- Available in overall widths of 75 mm and 105 mm
- EMC protection
Technical Specifications
Product properties
| Housing type | Press-drawn section housings |
| Housing series | UM-ALU |
| Product family | UM-ALU 4-100,5 |
| Type | Side elements (left and right) incl. snap-on foot and screws for basic profile |
| Ventilation openings present | no |
Dimensions
| Width | 105.4 mm |
| Height | 2 mm |
| Depth | 31 mm |
Material specifications
| Color (Housing) | aluminum |
| Housing Material | Aluminum |
| Surface characteristics | anodized |
Ambient conditions
| Max. IP code to attain | IP40 |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
Mounting
| Mounting Type | Screw mounting |
| Tightening torque / speed | Screw connection with the basic profile: 0.8 Nm-1 Nm / rpm- rpm |
Packaging specifications
| Type of packaging | packed in cardboard |
| Outer packaging type | Carton |
Accessories
UM-ALU 4-100,5 PROFILE 95 - Press-drawn section housings, Screw mounting, Basic profile, profile width (internal): 100.5 mm, profile width (external): 105 mm, length: 95 mm, depth: 29.4 mm- UM-ALU 4-100,5 PROFILE 130 - Press-drawn section housings, Screw mounting, Basic profile, profile width (internal): 100.5 mm, profile width (external): 105 mm, length: 130 mm, depth: 29.4 mm
- UM-ALU 4-100,5 PROFILE 235 - Press-drawn section housings, Screw mounting, Basic profile, profile width (internal): 100.5 mm, profile width (external): 105 mm, length: 235 mm, depth: 29.4 mm
