2200973
Official DistributorSKU
PHX2200973
MPN
UM-ALU 4 PE CONTACT
Weight
0.002 kg
Series UM-ALU

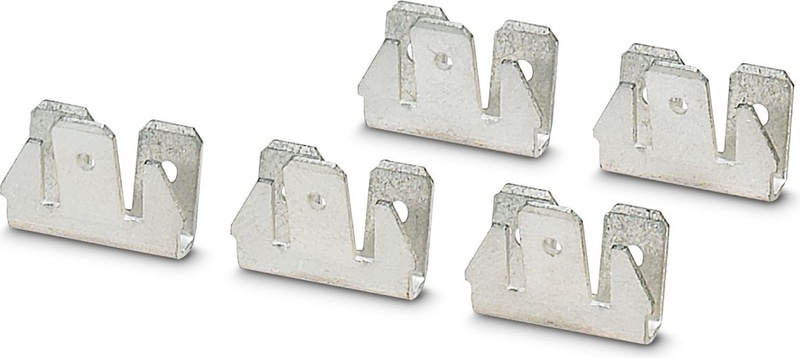

UM-ALU 4 PE CONTACT - Grounding clip
Press-drawn section housings, Grounding clamp for integrating the basic profile into the potential equalization system via slip-on sleeves in accordance with DIN 46244, width: 17 mm
- Aluminum extruded profile
- Variety of connection technology
- Can be mounted on the DIN rail
- Available in lengths from 42.5 mm ... 990 mm, can be cut to any length
- Available in overall widths of 75 mm and 105 mm
- EMC protection
Technical Specifications
Product properties
| Housing type | Press-drawn section housings |
| Housing series | UM-ALU |
| Product family | UM-ALU |
| Type | Grounding clamp for integrating the basic profile into the potential equalization system via slip-on sleeves in accordance with DIN 46244 |
Dimensions
| Width | 17 mm |
Material specifications
| Housing Material | Steel |
Ambient conditions
| Ambient Temperature (Operation) | -40 °C ... 100 °C |
Why Proax for Phoenix Contact 2200973?
Proax is an authorized distributor of Phoenix Contact 2200973 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 5 |
