2200949
Official DistributorSKU
PHX2200949
MPN
UM-ALU 4-100,5 FRONT 235
Weight
0.136 kg
Series UM-ALU

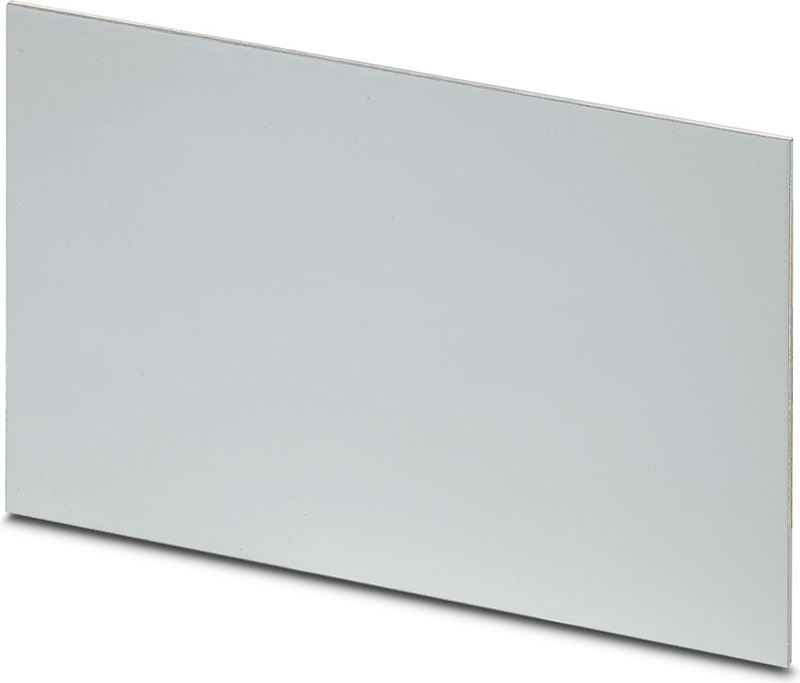

UM-ALU 4-100,5 FRONT 235 - Front plate
Press-drawn section housings, Basic profile front plate, width: 101.8 mm, length: 236.3 mm, depth: 2 mm, recommended for UM-ALU 4-..COVER PA.. lateral elements
- Aluminum extruded profile
- Variety of connection technology
- Can be mounted on the DIN rail
- Available in lengths from 42.5 mm ... 990 mm, can be cut to any length
- Available in overall widths of 75 mm and 105 mm
- EMC protection
Technical Specifications
Product properties
| Housing type | Press-drawn section housings |
| Housing series | UM-ALU |
| Product family | UM-ALU 4-100,5 |
| Type | Basic profile front plate |
| Ventilation openings present | no |
Dimensions
| Width | 101.8 mm |
| Depth | 2 mm |
| Length | 236.3 mm |
Material specifications
| Color (Housing) | aluminum |
| Housing Material | Aluminum |
| Surface characteristics | anodized |
Ambient conditions
| Max. IP code to attain | IP40 |
| Ambient Temperature (Operation) | -40 °C ... 100 °C (depending on power dissipation) |
| Ambient temperature (storage/transport) | -40 °C ... 55 °C |
| Ambient temperature (assembly) | -5 °C ... 100 °C |
Why Proax for Phoenix Contact 2200949?
Proax is an authorized distributor of Phoenix Contact 2200949 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
