Phoenix Contact 1442230
AllConnectorsDevice connectors
Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
MPN
SACCBP-MS-12CON-M16/2,0-PVCSCO
Weight
0.162 kg
Series SACCBP-MS

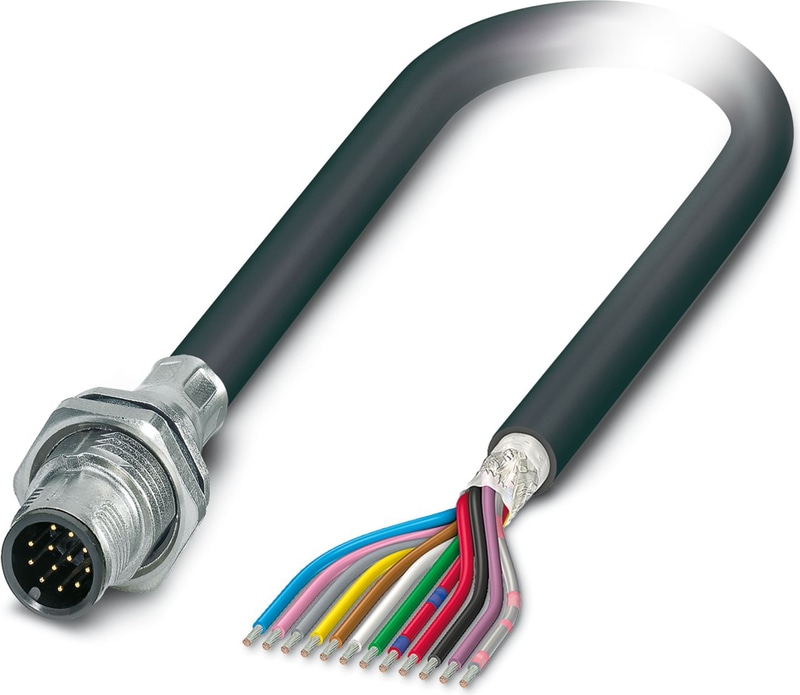

SACCBP-MS-12CON-M16/2,0-PVCSCO - Device connector rear mounting

Device connector rear mounting, Universal, 12-position, PVC/PVC, black RAL 9005, shielded, Pin, straight, M12-SPEEDCON, coding: A, on free cable end, Rear mounting, M16 x 1.5, Cable connection, cable length: 2 m, 0.14 mm2, PVC black, Alternative product in accordance with RoHS II without Exemption 6c (Pb < 0.1 %) item no.: 1239768

  • Preassembled with cables in various standard lengths for immediate use
  • Customer-specific assemblies and cable lengths can be supplied
  • Sealed on the cable side for optimum tightness of seal
  • For high transmission safety: shield connection to the housing with optional EMC nut
Technical Specifications

Notes

Notes on operationThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.
Order information:Lock nut is included in the scope of delivery

Mounting

Mounting TypeRear mounting M16 x 1.5 Thread with flat nut
Assembly instructionsThread with flat nut

Product properties

Sensor TypeUniversal
Number of Positions12
No. of cable outlets1
Shieldedyes
CodingA
Thread typeM12

Insulation characteristics

Overvoltage categoryII
Degree of pollution3

Material specifications

Flammability rating according to UL 94V0
Seal materialFKM
Contact MaterialCuZn
Contact surface materialAu
Contact carrier materialPA 6.6
Material for screw connectionZinc die-cast, nickel-plated
Outer sheath, materialPVC
Conductor materialTin-plated Cu litz wires

Electrical properties

Rated surge voltage0.8 kV
Contact resistance≤ 3 mΩ
Insulation resistance≥ 100 MΩ
Nominal voltage UN30 V
Nominal current IN1.5 A
Max. conductor resistance142 Ω/km

Conductor connection

Connection MethodCable connection
Contact connection typePin
Conductor Cross Section6x 2x 0.14 mm²
Tightening torque3 Nm ... 4 Nm (Installation-side)

Mechanical data

Insertion/withdrawal cycles> 100

Connection 1

Head designPin
Head cable outletstraight
Head thread typeM12
Head locking typeSPEEDCON
CodingA

Connection 2

Head designfree cable end

Cable/line

Cable Length2 m
Cable TypePVC black
Short symbolPVC
Signal type/categoryUniversal
External Cable Diameter7.00 mm ±0.03 mm
Outer sheath, materialPVC
External sheath, colorblack RAL 9005
Wire diameter incl. insulation1 mm ±0.05 mm
Single wire, colorwhite-brown, green-yellow, gray-pink, blue-red, black-violet, gray/pink-red/blue
Cable cross section6x 2x 0.14 mm²
Material, inner sheathPVC
Conductor materialTin-plated Cu litz wires
Conductor structure signal line18x 0.10 mm
Material wire insulationPVC
Thickness, insulation0.21 mm
Overall twistSix pairs around the filler to the core
ShieldingTinned copper braided shield
Optical shield covering85 %
Nominal voltage, cable300 V
Test voltage, cable1500 V AC
Cable resistance142 Ω/km (at 20 °C)
Smallest bending radius, fixed installation42 mm
Smallest bending radius, movable installation105 mm
Resistance to Oilin accordance with DIN EN 60811-404
Flame resistanceIEC 60332-1-2, IEC 60332-1, FT1, VW-1
Other resistanceHydrolysis and microbe resistant as per VDE 0282 section 10
Ambient Temperature (Operation)-40 °C ... 85 °C (cable, fixed installation)
Ambient Temperature (Operation)-25 °C ... 85 °C (Cable, flexible installation)

Ambient conditions

Degree of ProtectionIP67 (When plugged in)
Degree of ProtectionIP65 (When plugged in)
Degree of ProtectionIP65/IP67
Ambient Temperature (Operation)-25 °C ... 85 °C (Plug / socket)
Ambient Temperature (Operation)-40 °C ... 85 °C (without mechanical actuation)
Ambient Temperature (Operation)-25 °C ... 85 °C (Cable, flexible installation)
Ambient Temperature (Operation)-40 °C ... 85 °C (cable, fixed installation)
Resistance to Oilin accordance with DIN EN 60811-404

Standards and Regulations

Flame resistanceIEC 60332-1-2, IEC 60332-1, FT1, VW-1
Resistance to Oilin accordance with DIN EN 60811-404
Other resistanceHydrolysis and microbe resistant as per VDE 0282 section 10

M12

Standard designationM12 connector
Standards/specificationsIEC 61076-2-101
Accessories
  • Phoenix Contact1453368
    1453368
    Screw plug - SACC-M16-SEALING PLUG SET
  • Phoenix Contact1560251
    1560251
    Sealing cap - PROT-M12 FS
  • Phoenix Contact1430488
    1430488
    M12 metal sealing cap for unoccupied M12 plugs of the sensor/actuator cable, flush-type plugs and I/O devices in the field
  • Phoenix Contact1430394
    1430394
    Flat gasket - SACC-M16-SEAL CLM
