SACCBP-MSB-5CON-PG9/5,0-900SCO
Weight
0.222 kg
Series SACCBP-MSB

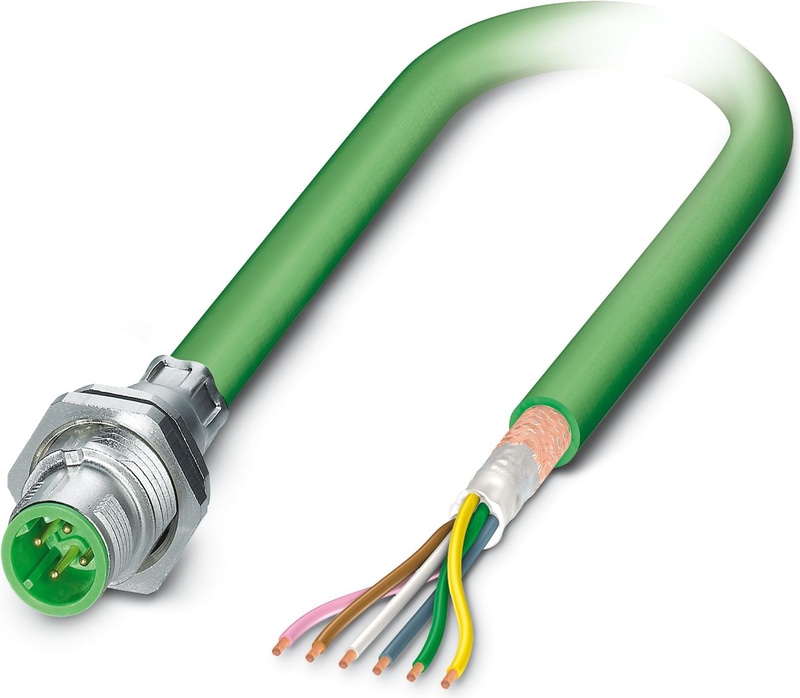

SACCBP-MSB-5CON-PG9/5,0-900SCO - Bus system flush-type plug

Bus system flush-type male connector, INTERBUS, 5-pos., M12, shielded, B-coded, SPEEDCON, rear/screw mounting with Pg9 thread, with 5.0 m bus line

  • Preassembled with cables in various standard lengths for immediate use
  • Customer-specific assemblies and cable lengths can be supplied
  • Sealed on the cable side for optimum tightness of seal
  • Cable designs for all common networks and fieldbuses
  • For high transmission safety: shield connection to the housing with optional EMC nut
Technical Specifications

Notes

Notes on operationThe electrical and mechanical data specified assume that the connector pair is correctly locked and mounted. If the connector is unlocked and if there is a danger of contamination, the connector must be sealed using a protective cap > IP54. Influences arising from litz wires, cables or PCB assembly must also be taken into consideration.

Safety note

Safety noteWARNING: The connectors may not be plugged in or disconnected under load. Ignoring the warning or improper use may damage persons and/or property.
Safety note• WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible.
Safety note• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
Safety note• The products are suitable for applications in plant, controller, and electrical device engineering.
Safety note• When operating the connectors in outdoor applications, they must be separately protected against environmental influences.
Safety note• Assembled products may not be manipulated or improperly opened.
Safety note• Only use mating connectors that are specified in the technical data of the standards listed (e.g. the ones listed in the product accessories online at phoenixcontact.com/products).
Safety note• When using the product in direct connection with third-party manufacturers, the user is responsible.
Safety note• For operating voltages > 50 V AC, conductive connector housings must be grounded
Safety note• Ensure that when laying the cable, the tensile load on the connectors does not exceed the upper limit specified in the standards.
Safety note• Observe the corresponding technical data. You will find information:o On the producto On the packing labelo In the supplied documentationo Online at phoenixcontact.com/products under the product
Safety note• Only use tools recommended by Phoenix Contact
Safety note• Use a protective cap to protect connectors that are not in use. The suitable accessories are available online in the accessory section of the product at phoenixcontact.com/products
Safety note• Ensure that the protective or functional ground has been properly connected.
Safety note• VDE 0100/1.97 § 411.1.3.2 and DIN EN 60 204/11.98 § 14.1.3 are applicable when combining several circuits in a cable and/or connector
Safety note• The connector warms up in normal operation. Depending on the ambient conditions, the surface of the connector can continue to warm up. In this case, the user is responsible for posting warnings (e.g. DIN EN ISO 13732-1:2008-12).

Mounting

Mounting TypeRear mounting

Product properties

Sensor TypeINTERBUS
Number of Positions5
No. of cable outlets1
Shieldedyes
CodingB

Insulation characteristics

Overvoltage categoryII
Degree of pollution3

Material specifications

Flammability rating according to UL 94V0
Seal materialFKM
Outer sheath, materialPUR

Electrical properties

Rated surge voltage1.5 kV
Insulation resistance100 MΩ
Nominal voltage UN48 V AC
Nominal voltage UN60 V DC
Nominal current IN4 A
Transmission mediumCopper

Mechanical data

Insertion/withdrawal cycles> 100

Connection 1

Head designPlug
Head cable outletstraight
Head thread typeM12
Head locking typeSPEEDCON
CodingB

Connection 2

Head designfree cable end

Cable/line

Cable Length5 m

INTERBUS [900]

Shieldedyes
Cable weight70 kg/km
Cable TypeINTERBUS
Cable type (abbreviation)900
Signal type/categoryINTERBUS
Cable structure3 x 2 x 0.22 mm²
External Cable Diameter8.00 mm
Outer sheath, materialPUR
External sheath, colormay green RAL 6017
Conductor materialBare Cu litz wires
Conductor structure signal line32x 0.10 mm
AWG Signal Line24
Conductor Cross Section3x 2x 0.22 mm²
Material wire insulationPE
Single wire, colorgreen-yellow, white-brown, gray-pink
Twisted pairs2 cores to the pair
Overall twist3 pairs to the core
ShieldingBraided copper wires
Nominal voltage, cable250 V (Peak value, not for high-power applications)
Test voltage Core/Core1500 Vrms
Test voltage Core/Shield1000.00 Vrms
Cable insulation resistance≥ 5 GΩ*km
Coupling resistance< 250.00 mΩ/m (at 30 MHz)
Wave impedance120 Ω ±20 % (at 64 kHz)
Wave impedance100 Ω ±15 % (with 1 MHz)
Loop resistance≤ 159.80 Ω/km
Cable capacity≤ 60 nF/km (At 800 Hz)
Signal speed0.66 c
Minimum bending radius, fixed installation7.5 x D
Minimum bending radius, flexible installation15 x D
Number of bending cycles5000000
Bending Radius120 mm
Traversing path10 m
Traversing rate1.6 m/s
Acceleration3.2 m/s²
Near end crosstalk attenuation (NEXT)≥ 61 dB (at 772 kHz)
Near end crosstalk attenuation (NEXT)≥ 59 dB (with 1 MHz)
Near end crosstalk attenuation (NEXT)≥ 55 dB (at 2 МHz)
Near end crosstalk attenuation (NEXT)≥ 50 dB (at 4 МHz)
Near end crosstalk attenuation (NEXT)≥ 46 dB (at 8 МHz)
Near end crosstalk attenuation (NEXT)≥ 44 dB (at 10 MHz)
Near end crosstalk attenuation (NEXT)≥ 41 dB (at 16 MHz)
Near end crosstalk attenuation (NEXT)≥ 40 dB (at 20 МHz)
Flame resistanceaccording to VDE 0472, Part 4, test type B
Flame resistanceaccording to IEC 60332-1
Ambient Temperature (Operation)-30 °C ... 70 °C (Cable, flexible installation)
Ambient Temperature (Operation)-40 °C ... 80 °C (cable, fixed installation)

Ambient conditions

Degree of ProtectionIP67 (When plugged in)
Degree of ProtectionIP65 (When plugged in)
Degree of ProtectionIP65/IP67
Ambient Temperature (Operation)-25 °C ... 85 °C (Plug / socket)
Ambient Temperature (Operation)-40 °C ... 85 °C (without mechanical actuation)

M12

Standard designationM12 connector
Standards/specificationsIEC 61076-2-101
