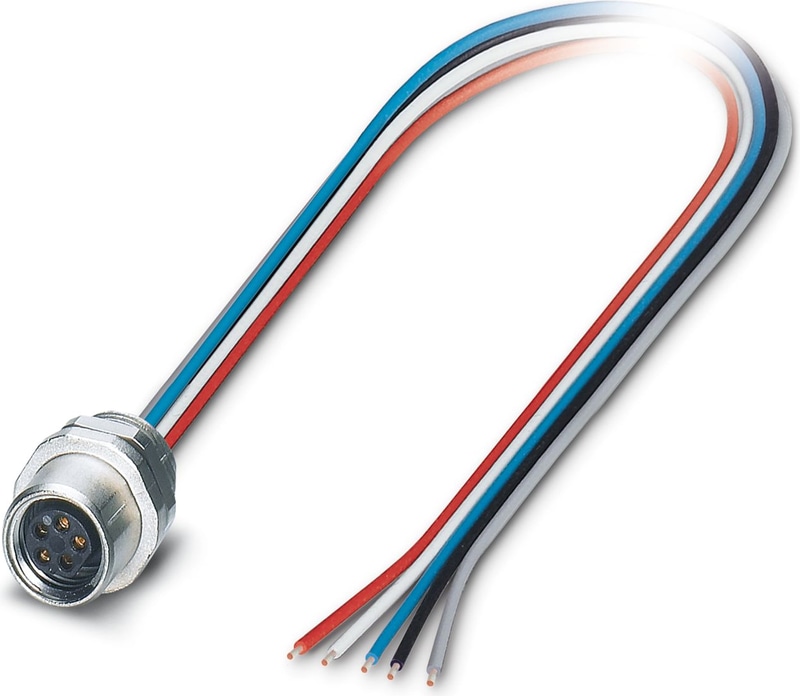

SACC-E-M8FS-5CON-M10/0,5 DN - Device connector front mounting
Device connector front mounting, DeviceNet™, 5-position, Socket, straight, M8, Front mounting, M10, Individual wires, cable length: 0.5 m, 0.25 mm2, PVC litz wire
- Preassembled with litz wires for immediate use
- Customer-specific assemblies and litz wire lengths available
- Sealed on the litz wire side for optimum leak-tightness
Technical Specifications
Mounting
| Mounting Type | Front mounting M10 |
Product properties
| Application | Data |
| Sensor Type | DeviceNet™ |
| Number of Positions | 5 |
| Shielded | no |
| Coding | B |
| Thread type | M8 |
Insulation characteristics
| Overvoltage category | II |
| Degree of pollution | 3 |
Material specifications
| Flammability rating according to UL 94 | HB |
| Contact Material | Cu alloy |
| Contact surface material | Au |
| Contact carrier material | PA 6.6 |
| Material for screw connection | Zinc die-cast, nickel-plated |
| Conductor material | Tin-plated Cu litz wires |
Electrical properties
| Contact resistance | ≤ 3 mΩ |
| Insulation resistance | ≥ 100 MΩ |
| Nominal voltage UN | 30 V AC |
| Nominal voltage UN | 30 V DC |
| Nominal current IN | 3 A |
| Max. conductor resistance | 80 Ω/km |
Conductor connection
| Connection Method | Individual wires |
| Contact connection type | Socket |
| Conductor Cross Section | 0.25 mm² |
Connection 1
| Head design | Socket |
| Head cable outlet | straight |
| Head thread type | M8 |
Cable/line
| Cable Length | 0.5 m |
| Cable Type | PVC litz wire |
| Signal type/category | DeviceNet™ |
| Wire diameter incl. insulation | 1.5 mm ±0.1 mm |
| Single wire, color | gray, red, white, black, blue |
| Cable cross section | 0.25 mm² |
| Conductor material | Tin-plated Cu litz wires |
| Conductor structure signal line | 7x 0.20 mm |
| AWG Signal Line | 24 |
| Material wire insulation | PVC / UL |
| Thickness, insulation | 0.21 mm |
| Nominal voltage, cable | 300 V |
| Test voltage, cable | 2000 V AC |
| Cable resistance | ≥ 80 Ω/km |
| Cable insulation resistance | ≥ 20 MΩ*km |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -10 °C ... 105 °C |
Ambient conditions
| Degree of Protection | IP67 |
| Degree of Protection | IP67 |
| Ambient Temperature (Operation) | -25 °C ... 85 °C (Plug / socket) |
| Ambient Temperature (Operation) | -40 °C ... 105 °C (cable, fixed installation) |
| Ambient Temperature (Operation) | -10 °C ... 105 °C |
M8
| Standard designation | M8 connector |
| Standards/specifications | IEC 61076-2-104 |
