Phoenix Contact 1530618
AllConnectorsDevice connectors

1530618

Phoenix ContactOfficial Distributor

By Phoenix Contact

SKU
PHX1530618
MPN
SACC-E-M5FS-4CON-M5/0,5
Weight
0.008 kg
Series SACC-E-M

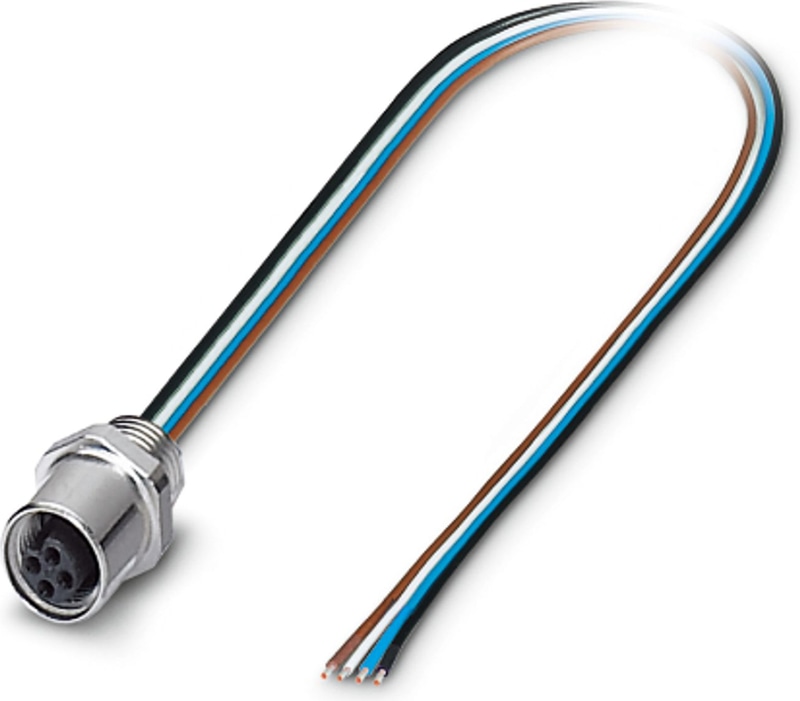

SACC-E-M5FS-4CON-M5/0,5 - Device connector front mounting

Device connector front mounting, 4-position, Socket, straight, M5, Front mounting, M5 x 0.5, Individual wires, cable length: 0.5 m, 0.14 mm2, TPE litz wire

  • Preassembled with litz wires for immediate use
  • Customer-specific assemblies and litz wire lengths available
  • Sealed on the litz wire side for optimum leak-tightness
Technical Specifications

Mounting

Mounting TypeFront mounting M5 x 0.5

Product properties

Number of Positions4
No. of cable outlets1
Shieldedno
CodingA
Thread typeM5

Insulation characteristics

Overvoltage categoryII
Degree of pollution3

Material specifications

Flammability rating according to UL 94HB
Seal materialViton
Contact MaterialCuSn
Contact surface materialAu
Contact carrier materialPA 6.6
Material for screw connectionBrass, nickel-plated

Electrical properties

Contact resistance≤ 3 mΩ
Insulation resistance≥ 100 MΩ
Nominal voltage UN48 V AC
Nominal voltage UN60 V DC
Nominal current IN1 A
Test voltage800 V

Conductor connection

Connection MethodIndividual wires
Contact connection typeSocket
Conductor Cross Section0.14 mm²

Connection 1

Head designSocket
Head cable outletstraight
Head thread typeM5

Cable/line

Cable Length0.5 m
Cable TypeTPE litz wire
Single wire, colorbrown, white, blue, black
Cable cross section0.14 mm²
Conductor structure signal line18x 0.10 mm
AWG Signal Line26
Material wire insulationTPE
Ambient Temperature (Operation)-25 °C ... 80 °C (cable, fixed installation)

Ambient conditions

Degree of ProtectionIP67
Degree of ProtectionIP67
Ambient Temperature (Operation)-25 °C ... 80 °C (cable, fixed installation)
Ambient Temperature (Operation)-25 °C ... 85 °C (Plug)

M5

Standard designationM5 connector
Standards/specificationsIEC 61076-2-105
Accessories
  • Phoenix Contact1535901
    1535901
    SACC-E-MU-M 5 - Flat nut, for threads M5 x 0.5
