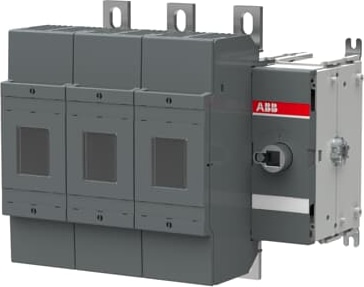

OS400J30-FC
Official DistributorBy ABB
SKU
ABBOS400J30FC
MPN
1SCD000026R0014
Weight
9.336 kg
3P SW 400A J FUSE FLANGE CABLE
Technical Specifications
ABB EcoSolutions
| End Of Life Disassembling Instructions | 1SCC311050M0201 |
Technical
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | 400 A |
| Fuse System | Class J |
| Handle Type | Handle not included |
| Number of Poles | 3P |
| Operating mode | Front |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 132 kW |
| Rated Operational Power AC-23A (Pe) | (400 V) 220 kW |
| Rated Operational Power AC-23A (Pe) | (415 V) 230 kW |
| Rated Operational Power AC-23A (Pe) | (500 V) 280 kW |
| Rated Operational Power AC-23A (Pe) | (690 V) 400 kW |
| Rated Operational Voltage | Main Circuit 600 V AC |
| Terminal Type | Lug terminals |
Technical UL/CSA
| Ampere Rating | 400 A |
Why Proax for ABB OS400J30-FC?
Proax is an authorized distributor of ABB OS400J30-FC and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | OS400J30FC |
| Pack Size | 1 |
