1SCA022755R0810
Weight
6.653 kg

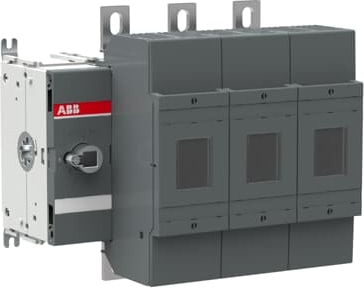

Switch Fuses,Front Operated,3-pole,03 (Left Side),Class J,400 A,Handle and shaft not included,
Documents
Technical Specifications
Dimensions
| Product Net Width | 255 mm |
| Product Net Height | 230 mm |
| Product Net Depth / Length | 176 mm |
| Product Net Weight | 6.4 kg |
| Product Net Weight | 14.11 lb |
Technical
| Rated Operational Current AC-21A (Ie) | (500 V) 400 A |
| Rated Operational Current AC-21A (Ie) | (690 V) 400 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 400 A |
| Rated Operational Current AC-22A (Ie) | (690 V) 400 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 400 A |
| Rated Operational Current AC-23A (Ie) | (690 V) 400 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 132 kW |
| Rated Operational Power AC-23A (Pe) | (400 V) 220 kW |
| Rated Operational Power AC-23A (Pe) | (415 V) 230 kW |
| Rated Operational Power AC-23A (Pe) | (500 V) 280 kW |
| Rated Operational Power AC-23A (Pe) | (690 V) 400 kW |
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 400 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Voltage | Main Circuit 690 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 14 kiloampere rms |
| Rated Conditional Short-Circuit Current (Inc) | (690 V) 80 kA |
| Power Loss | at Rated Operating Conditions per Pole 30 W |
| Pollution degree | 3 |
| Handle Type | Handle and shaft not included |
| Switches Operating Mechanism | 03 (Left Side) |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Fuse Size | 400 A |
| Fuse System | Class J |
| Operating mode | Front Operated |
| Standards | UL98 |
| Standards | IEC 60947-3 |
| Mounting Type | Base mounting |
| Number of Poles | 3 |
| Terminal Type | Lug terminals |
| Terminal Width | 25 mm |
| Tightening torque | 30 ... 44 N·m |
| Rated Current (In) | Main Circuit 400 A |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | Main Circuit 600 V AC |
| Maximum Operating Voltage UL/CSA | Main Circuit 250 V DC |
| Ampere Rating | 400 A |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 125 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 480 V) 250 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 600 V) 350 Hp |
| Tightening torque | 30 ... 44 N·m |
| Tightening Torque UL/CSA | Wire-Clamp 375 in·lb |
| Tightening Torque UL/CSA | Cable Lug 240 in·lb |
