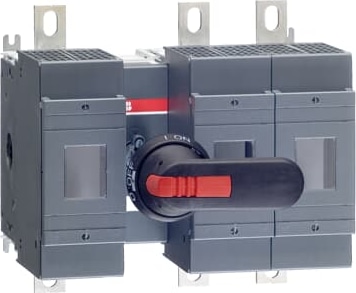

OS400J12P
Official DistributorBy ABB
SKU
ABBOS400J12P
MPN
1SCA022753R7380
Weight
7.3 kg
Switch Fuses,Front Operated,3-pole,12 (Between the Poles),Class J,400 A,Handle and shaft included,
Technical Specifications
ABB EcoSolutions
| ABB Site Meeting Group Waste To Landfill Target | UL 2799 Zero Waste To Landfill Validation available |
| End Of Life Disassembling Instructions | 1SCC311050M0201 |
| Environmental Product Declaration - EPD | 1SCC311198D0201 |
Dimensions
| Product Net Width | 254 mm |
| Product Net Height | 230 mm |
| Product Net Depth / Length | 176 mm |
| Product Net Weight | 7.3 kg |
Technical
| Conventional Free-air Thermal Current (Ith) | Θ = 40 °C 400 A |
| Conventional Thermal Current (Ithe) | Fully Enclosed 400 A |
| Degree of Protection | acc. to IEC 60529 IP20 |
| Fuse Size | 400 A |
| Fuse System | Class J |
| Handle Type | Pistol handle |
| Mounting Type | Base mounting |
| Number of Poles | 3P |
| Operating mode | Front |
| Pollution degree | 3 |
| Position of Line Terminals | Top In - Bottom Out, Bottom In - Top Out |
| Power Loss | at Rated Current 36 W |
| Rated Conditional Short-Circuit Current (Inc) | (600 V AC) 200 kA |
| Rated Current (In) | Main Circuit 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 12 kV |
| Rated Insulation Voltage (Ui) | 1000 V |
| Rated Operational Current AC-21A (Ie) | (500 V) 400 A |
| Rated Operational Current AC-21A (Ie) | (690 V) 400 A |
| Rated Operational Current AC-22A (Ie) | (380 ... 415 V) 400 A |
| Rated Operational Current AC-22A (Ie) | (500 V) 400 A |
| Rated Operational Current AC-22A (Ie) | (690 V) 400 A |
| Rated Operational Current AC-23A (Ie) | (380 ... 415 V) 400 A |
| Rated Operational Current AC-23A (Ie) | (500 V) 400 A |
| Rated Operational Current AC-23A (Ie) | (690 V) 400 A |
| Rated Operational Power AC-23A (Pe) | (220 ... 240 V) 132 kW |
| Rated Operational Power AC-23A (Pe) | (400 V) 220 kW |
| Rated Operational Power AC-23A (Pe) | (415 V) 230 kW |
| Rated Operational Power AC-23A (Pe) | (500 V) 280 kW |
| Rated Operational Power AC-23A (Pe) | (690 V) 400 kW |
| Rated Operational Voltage | Main Circuit 600 V AC |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 14 kiloampere rms |
| Standards | UL98 |
| Standards | IEC 60947-3 |
| Switches Operating Mechanism | 12 (Between the Poles) |
| Terminal Type | Lug terminals |
| Terminal Width | 25 mm |
| Tightening torque | 30 ... 44 N·m |
Technical UL/CSA
| Ampere Rating | 400 A |
| Horsepower Rating UL/CSA | (acc. to UL 240 V) 125 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 480 V) 250 Hp |
| Horsepower Rating UL/CSA | (acc. to UL 600 V) 350 Hp |
| Tightening torque | 30 ... 44 N·m |
| Tightening Torque UL/CSA | Wire-Clamp 375 in·lb |
| Tightening Torque UL/CSA | Cable Lug 240 in·lb |
