Official DistributorBy Advantech
SKU

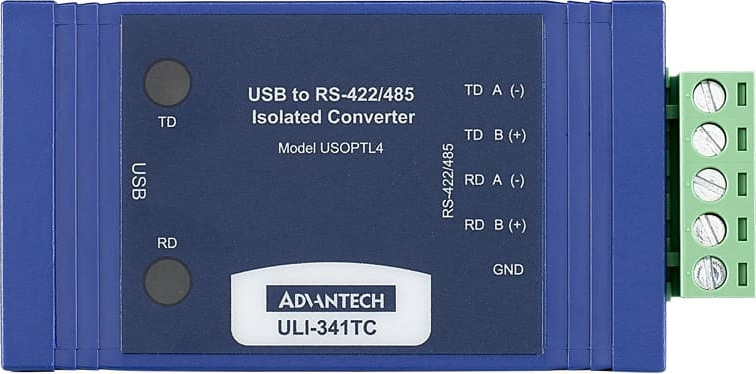

Supports 2-wire USB to RS-485 or 4-wire RS-422/485. Long range, multi-drop communications. Easy to set up with plug in terminal block on RS-422/485 side and a high retention USB connector that works with a standard USB cable (included). LEDs indicate Transmit and Receive. USB Port Powered.
Features
- USB to RS-422/485 Converter
- 2 kV Isolation
- USB Port Powered
- High Retention USB Connector, Plug in Serial Terminal Block
- 460.8 kbps Serial Data Rate
- USB Cable Included
Documents
Technical Specifications
Accessory General
| Mounting | Inline |
Environment
| Temperature (Operating Range) | 0 ~ 70°C (32 ~ 158°F) |
General
| Technology | USB |
| Mounting | Inline |
| Power | Bus Powered |
| Temperature | 0 to 70C |
| Isolation | 2kV |
| Serial Port Count | 1 |
| Serial Type | RS-422, RS-485 |
| Serial Connector | Terminal Block |
Power
| Power Input (USB) | Port-Powered from USB host (5 VDC) |
Protection
| Isolation | 2,000 VDC |
Serial Communication
| Serial Standard | RS-422 / RS-485 |
| Serial Port Number | 1 |
| Serial Port Connector Type | Terminal block |
| Maximum Serial Transmission Speed | 460.8 Kbps |
Upstream USB Port
| Standard | USB 2.0 |
| Maximum Transfer Rate | Full-Speed (12 Mbps) |
| Connector Type | Type B (Female) High Retention |
| Port Number | 1 |
