SKU

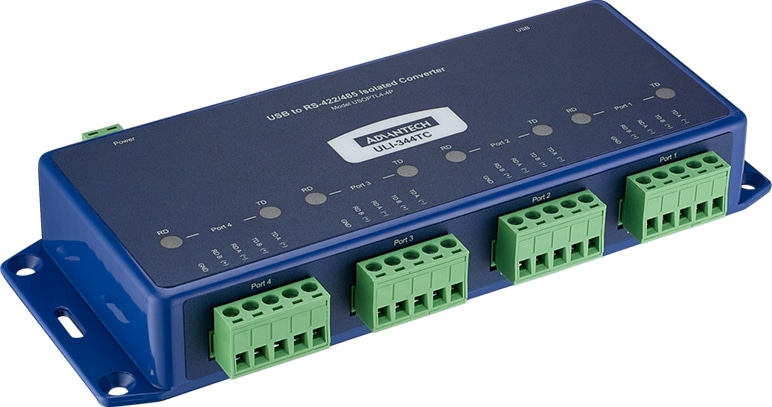

Four serial ports, 2-wire RS-485 or 4-wire USB to RS-422/485. Long range, multi-drop communications. Easy to set up with plug in terminal blocks on RS-422/485 side and a high retention USB connector that works with a standard USB cable. LEDs indicate transmit and receive. 10-30 VDC power input.
Features
- USB to RS-422/485 Converter
- 2 kV Isolation
- 921.6 Kbps Serial Data Rate
- Flat Panel Mounting
- Terminal Block for 10-30 VDC Power Input
- High Retention USB Connector, Plug in Serial Terminal Block
- USB Cable Included
Documents
Technical Specifications
Accessory General
| Mounting | Panel |
Environment
| Temperature (Operating Range) | 0 ~ 70°C (32 ~ 158°F) |
General
| Technology | USB |
| Mounting | Panel |
| Power | Bus Powered |
| Temperature | 0 to 70C |
| Isolation | 2kV |
| Serial Port Count | 4 |
| Serial Type | RS-422, RS-485 |
| Serial Connector | Terminal Block |
Power
| Power Input (DC) | 10 ~ 30 VDC |
| Power Input (USB) | Port-Powered from USB host (5 VDC) |
Protection
| Isolation | 2,000 VDC |
Serial Communication
| Serial Port Connector Type | Terminal block |
| Maximum Serial Transmission Speed | 921.6 Kbps |
| Serial Standard | RS-422 / RS-485 |
| Serial Port Number | 4 |
Upstream USB Port
| Standard | USB 2.0 |
| Maximum Transfer Rate | Full-Speed (12 Mbps) |
| Connector Type | Type B (Female) High Retention |
| Port Number | 1 |
Why Proax for Advantech BB-USOPTL4-4P?
Proax is the authorized distributor of Advantech BB-USOPTL4-4P. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | BBUSOPTL44P |
| Pack Size | 1 |
