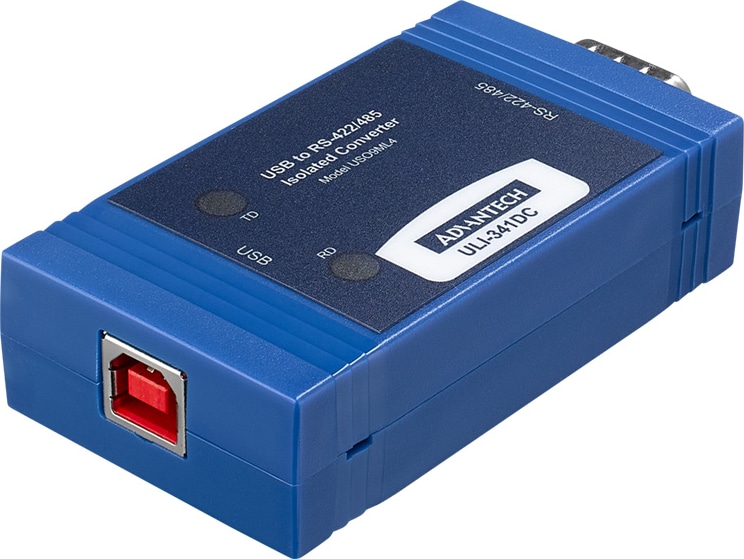

Supports 2-wire USB to RS-485 or 4-wire RS-422/485, long range and multi-drop communication. Easy to set up with DB9 Male and a high retention USB connector that works with a standard USB cable, which is included. LEDs indicate transmit and receive. USB Port Powered. DB9 Male Serial Connector.
Features
- USB to RS-422/485 Converter
- 2 kV Isolation
- USB Port Powered
- High Retention USB Connector, DB9 Male Serial Connector
- 460.8 kbps Serial Data Rate
Documents
Technical Specifications
Accessory General
| Mounting | Inline |
Environment
| Temperature (Operating Range) | 0 ~ 70°C (32 ~ 158°F) |
General
| Technology | USB |
| Mounting | Inline |
| Power | Bus Powered |
| Temperature | 0 to 70C |
| Isolation | 2kV |
| Serial Port Count | 1 |
| Serial Type | RS-422, RS-485 |
| Serial Connector | Terminal Block |
Power
| Power Input (USB) | Port-Powered from USB host (5 VDC) |
Protection
| Isolation | 2,000 VDC |
Serial Communication
| Serial Standard | RS-422 / RS-485 |
| Serial Port Number | 1 |
| Serial Port Connector Type | DB9 male |
| Maximum Serial Transmission Speed | 460.8 Kbps |
Upstream USB Port
| Standard | USB 2.0 |
| Maximum Transfer Rate | Full-Speed (12 Mbps) |
| Connector Type | Type B (Female) High Retention |
| Port Number | 1 |
Why Proax for Advantech BB-USO9ML4?
Proax is the authorized distributor of Advantech BB-USO9ML4. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | BBUSO9ML4 |
| Pack Size | 1 |
