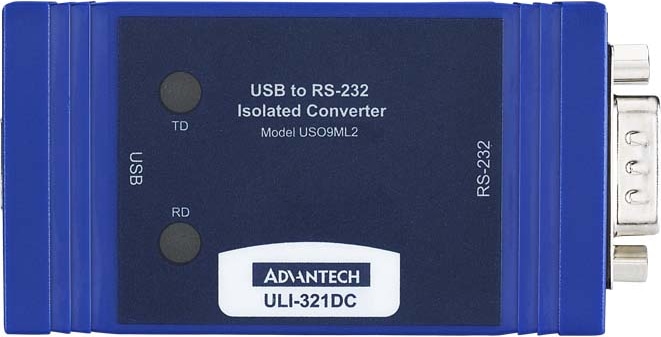

Supports serial USB 2.0 to RS-232 Adapter. Easy to set up with a DB9 M on the RS-232 side and a high retention USB connector that works with a standard USB cable (included). 460.8 kbps Serial Data Rate. LEDs indicate transmit and receive. USB Port Powered.
Features
- USB to RS-232 Converter
- 2 kV Isolation
- USB Port Powered
- High Retention USB Connector
- 460.8 kbps Serial Data Rate
- USB Cable Included
Documents
Technical Specifications
Accessory General
| Mounting | Inline |
Environment
| Temperature (Operating Range) | 0 ~ 70°C (32 ~ 158°F) |
Power
| Power Input (USB) | Port-Powered from USB host (5 VDC) |
Protection
| Isolation | 2,000 VDC |
| ESD protection | 4 kV (Contact) ; 8 kV (Air) |
Serial Communication
| Serial Port Number | 1 |
| Serial Standard | RS-232 |
| Serial Port Connector Type | DB9 male |
| Maximum Serial Transmission Speed | 460.8 Kbps |
Upstream USB Port
| Standard | USB 2.0 |
| Maximum Transfer Rate | Full-Speed (12 Mbps) |
| Connector Type | Type B (Female) High Retention |
| Port Number | 1 |
Why Proax for Advantech BB-USO9ML2-A?
Proax is the authorized distributor of Advantech BB-USO9ML2-A. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | BBUSO9ML2A |
| Pack Size | 1 |
