Technical Specifications
Additional Information
| ABB Type Designation | 3HP,1755RPM,3PH,60HZ,182TC,0632M,TE |
| Ambient Temperature | 40 °C |
| Bearing | 6206 |
| Bearing | Ball |
| Bearing NDE | 6205 |
| Bearing NDE | Ball |
| Brake Present | No |
| Brand / Label | Baldor-Reliance |
| Catalog Number | VEM3661T-5 |
| Certification Agency | CSA |
| Certification Agency | CSA EEV |
| Certification Agency | UR |
| Country of Origin | United States (US) |
| Customs tariff number | 85015220 |
| Design | B |
| Dimension Diagram | 06LYH016 |
| Drive End Flange Type | C-Face |
| Duty Time | 60 Min |
| Efficiency Level | 2015 Small Motor Standard |
| Efficiency Level | IE3 |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Enclosure Type | TEFC |
| ETIM 7 | EC001851 - Electric motor |
| Frame Material | Iron |
| Frame Size | 182 |
| Frequency (f) | 60 Hz |
| Global Commercial Alias | VEM3661T-5 |
| Gross Volume | 5274.135 in³ |
| Gross Weight | 44.452 kg |
| Horsepower Rating UL/CSA | 3.000 Hp |
| IDEA Granular Category Code (IGCC) | 1325 >> General purpose motor AC |
| Insulation Class | F |
| Invoice Description | 3HP,1755RPM,3PH,60HZ,182TC,0632M,TEFC,F1 |
| Made to Order | No |

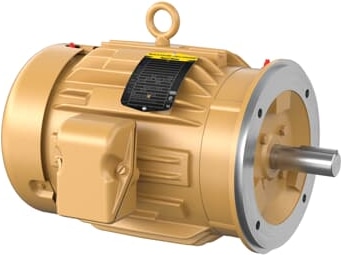

| Medium Description | General Purpose 3PH Enclosed, 3 HP, 1800 RPM, Frame Size 182Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (VEM3661T-5) |
| Minimum Order Quantity | 1 piece |
Additional Information
| Motor Base Type | Footless |
| Motor Frame Size | 182TC |
| Motor Frame Suffix | TC |
| Mounting Orientation | Horizontal |
| Mounting Position | F1 |
| NEMA Design Code | B |
| Number of phases | 3 |
| Number of Poles | 4 |
| Number of Poles (High) | 4 |
| Number of Speeds | Single Speed |
| Order Multiple | 1 piece |
| Output Power | 3 Hp |
| POWER factor | 77 % |
| Product Net Depth / Length | 21.625 in |
| Product Net Height | 15.125 in |
| Product Net Weight | 44.452 kg |
| Product Net Width | 16.125 in |
| Product type | Undefined |
| Quote Only | No |
| Rated Current (In) | 3.3 A |
| Rated Efficiency | 89.5 % |
| Rated Speed | 1,755 r/min |
| Selling Unit of Measure | piece |
| Service Factor | 1.15 |
| Service Factor Percentage | 1.15 % |
| Shaft Diameter | 1.125 in |
| Short Description | 3 HP, 1800 RPM, Frame Size 182Tc, C-Face, 3 PH, TEFC, 575 V |
| Standards | NEMA |
| Starting of Motor | Direct On Line |
| Stocked At (Warehouses) | China |
| Stocked At (Warehouses) | Alabama, United States |
| Stocked At (Warehouses) | Alaska, United States |
| Synchronous Speed (vsyn) | 1800 r/min |
| Type of Duty | Continuous |
| UNSPSC | 26101112 |
| Voltage Rating | 575 V |
Why Proax for ABB VEM3661T-5?
Proax is an authorized distributor of ABB VEM3661T-5 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | VEM3661T5 |
| Pack Size | 1 |
