Technical Specifications
Additional Information
| ABB Type Designation | 3HP,3450RPM,3PH,60HZ,182TC,3532M,TE |
| Ambient Temperature | 40 °C |
| Bearing | 6206 |
| Bearing | Ball |
| Bearing NDE | 6203 |
| Bearing NDE | Ball |
| Brake Present | No |
| Brand / Label | Baldor-Reliance |
| Catalog Number | VEM3610T-5 |
| Certification Agency | CSA |
| Certification Agency | CSA EEV |
| Certification Agency | UR |
| Country of Origin | United States (US) |
| Customs tariff number | 85015220 |
| Design | B |
| Dimension Diagram | 35LYL114 |
| Drive End Flange Type | C-Face |
| Duty Time | 60 Min |
| Efficiency Level | 2015 Small Motor Standard |
| Efficiency Level | IE3 |
| Efficiency Level | Premium Efficiency (NEMA 12-12) |
| Enclosure Type | TEFC |
| ETIM 7 | EC001851 - Electric motor |
| Frame Material | Steel |
| Frame Size | 182 |
| Frequency (f) | 60 Hz |
| Global Commercial Alias | VEM3610T-5 |
| Gross Volume | 3496.049 in³ |
| Gross Weight | 24.04 kg |
| Horsepower Rating UL/CSA | 3.000 Hp |
| IDEA Granular Category Code (IGCC) | 1325 >> General purpose motor AC |
| Insulation Class | F |
| Invoice Description | 3HP,3450RPM,3PH,60HZ,182TC,3532M,TEFC,F1 |
| Made to Order | No |

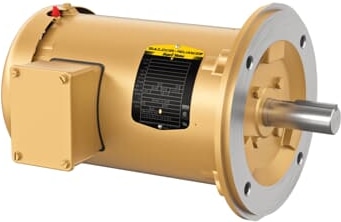

| Medium Description | General Purpose 3PH Enclosed, 3 HP, 3600 RPM, Frame Size 182Tc, C-Face Mounting, 3 Phase, TEFC Enclosure, 575 V, 60 Hz (VEM3610T-5) |
| Minimum Order Quantity | 1 piece |
| Motor Base Type | Footless |
Additional Information
| Motor Frame Size | 182TC |
| Motor Frame Suffix | TC |
| Mounting Orientation | Horizontal |
| Mounting Position | F1 |
| NEMA Design Code | B |
| Number of phases | 3 |
| Number of Poles | 2 |
| Number of Poles (High) | 2 |
| Number of Speeds | Single Speed |
| Order Multiple | 1 piece |
| Output Power | 3 Hp |
| POWER factor | 92 % |
| Product Net Depth / Length | 19.375 in |
| Product Net Height | 13.123 in |
| Product Net Weight | 24.04 kg |
| Product Net Width | 13.75 in |
| Product type | Undefined |
| Quote Only | No |
| Rated Current (In) | 2.9 A |
| Rated Efficiency | 86.5 % |
| Rated Speed | 3,450 r/min |
| RoHS Information | RoHS Compliant |
| Selling Unit of Measure | piece |
| Service Factor | 1.15 |
| Service Factor Percentage | 1.15 % |
| Shaft Diameter | 1.125 in |
| Short Description | 3 HP, 3600 RPM, Frame Size 182Tc, C-Face, 3 PH, TEFC, 575 V |
| Standards | NEMA |
| Starting of Motor | Direct On Line |
| Stocked At (Warehouses) | China |
| Stocked At (Warehouses) | Alabama, United States |
| Stocked At (Warehouses) | Alaska, United States |
| Synchronous Speed (vsyn) | 3600 r/min |
| Type of Duty | Continuous |
| UNSPSC | 26101112 |
| Voltage Rating | 575 V |
Why Proax for ABB VEM3610T-5?
Proax is an authorized distributor of ABB VEM3610T-5 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | VEM3610T5 |
| Pack Size | 1 |
