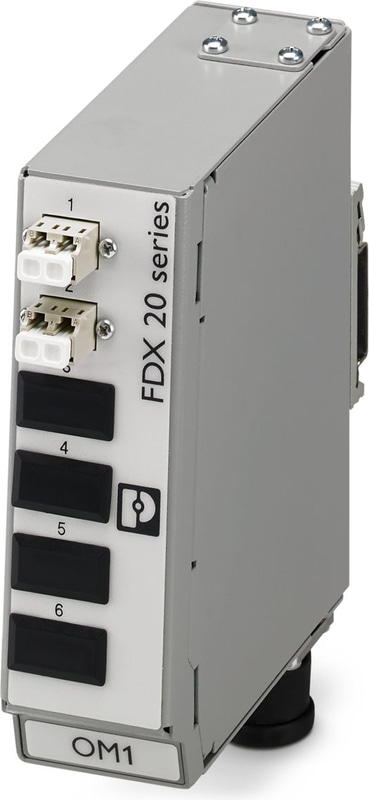

DIN rail distributor box 2x LC duplex on M17 4-pos.
1208051
Official DistributorSKU
PHX1208051
MPN
FOC-PP-17S4-LCD2-OM1
Weight
0.594 kg
Series FOC-PP
FOC-PP-17S4-LCD2-OM1 - Distributor
Distributor, design: Rail-mountable module, degree of protection: IP20, number of positions: 4, material: Metal, connection method: M17 circular connector, cable outlet: above and below, housing size: 1, color: gray, Ethernet
- Intuitive front-panel operation and clear control cabinet layout thanks to uniform design
- Flexible DIN rail mounting possible in six positioning directions
- Suitable for industrial applications
- Reduced installation time with plug-and-play
- Pin assignment straight in line in a link
- Continuously reliable data connection, thanks to extensively tested components
- Snap-on mounting on standard DIN rails NS 35/7.5 or NS 35/15
- Transmission rate up to 1000 Mbps
Technical Specifications
Product properties
| Type | Rail-mountable module |
| Sensor Type | Ethernet |
| Number of Positions | 4 |
| Connection profile | LC-Duplex |
| No. of conductors | 4 |
| Number of module slots | 2 |
| Number of slots | 4 |
| Protective cover | yes |
| Cable outlet | above and below |
Electrical properties
| Attenuation | ≤ 0.6 dB |
| Transmission medium | FO |
Connection technology
| Connection Method | M17 circular connector |
Dimensions
| Width | 40 mm |
| Height | 130 mm |
| Depth | 115 mm |
Housing
| Housing width | 40 mm |
Mechanical characteristics
| Ferrule diameter | 1.25 mm |
Material specifications
| Color | gray |
| Flammability rating according to UL 94 | V0 |
| Ferrule material | Zirconia ceramics |
| Housing Material | Metal |
| Housing surface material | Powder-coated, gray (metal housing) |
Cable/line
| Cable Type | Multimode fiberglass |
| Cable Type | Fan out |
| External Cable Diameter | ≤ 12.00 mm (of 6 mm) |
| External Cable Diameter | 6 mm ... 12 mm |
| Individual wire diameter | 2 mm |
FO cable
| Number of fibers | 4 |
| Fiber | GOF |
| Fiber type | Multimode fiberglass 62.5/125 µm |
| Transmission medium | FO |
Characteristics
| Attenuation | ≤ 0.6 dB |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Ambient temperature (assembly) | -5 °C ... 55 °C |
Mounting
| Mounting Type | DIN rail mounting |
| Assembly instructions | Option for flexible replugging of DIN rail adapter |
Why Proax for Phoenix Contact 1208051?
Proax is an authorized distributor of Phoenix Contact 1208051 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
