1208107
Official DistributorSKU
PHX1208107
MPN
FOC-PT9:SC-OM1/2.5
Weight
0.062 kg
This product is Not Cancellable/Not Returnable
This item is ineligible for free shipping due to its size/weight.

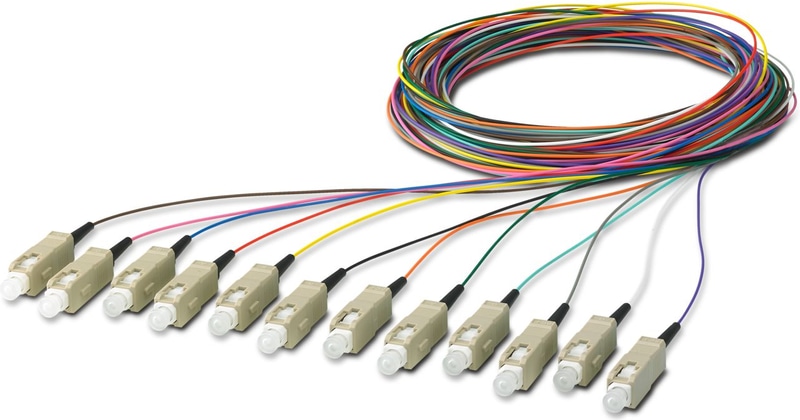

FOC-PT9:SC-OM1/2.5 - Fiber optic cable
Fiber optic cable, design: LC, degree of protection: IP20, cable length: 2.5 m, number of positions: 12, connection method: SC, cable outlet: straight, color: beige
- Optimum attenuation values with UPC polishing
- Time saving and minimized risk of breakage with easy offsetting
- Easy assignment thanks to 12 different colors
- Future-proof, thanks to RoHS 2 conformity
- Fire protection class UL 94-V0
Technical Specifications
Product properties
| Type | SC |
| Number of Positions | 12 |
| Number of slots | 12 |
| Cable outlet | straight |
Electrical properties
| Attenuation | ≤ 0.3 dB (1300 nm) |
| Transmission medium | FO |
Connection data
| Connection Method | SC |
Dimensions
| Width | 9 mm |
| Height | 8.3 mm |
| Length | 2500 mm |
Mechanical characteristics
| Ferrule diameter | 2.50 mm |
Material specifications
| Color | beige |
| Color of the housing part | beige |
| Flammability rating according to UL 94 | V0 |
| Ferrule material | Zirconia ceramics |
| Material of grip body | beige |
| Outer sheath, material | LSZH |
Connection 1
| Type | Plug SC duplex |
| Degree of Protection | IP20 |
Connection 2
| Type | free cable end free cable end |
| Degree of Protection | IP20 |
Cable/line
| Cable Length | 2.50 m |
| Cable Type | Optical wire |
| Cable Type | 900 µm |
| Cable structure | semi-loose compact wires (STB) |
| Outer sheath, material | LSZH |
| Single wire, material | LSZH |
| Individual wire diameter | 900 µm |
| Tensile strength short-term/long-term | 10 N |
| Whip length | 2500 mm |
| Halogen-free | yes |
| Resistance to Oil | no |
| Flame resistance | yes |
FO cable
| Number of fibers | 12 |
| Fiber | 62.5/125 µm OM1 |
| Fiber type | Multimode |
| Attenuation | ≤ 0.3 dB |
| Return Loss | ≥ 35 dB |
| Transmission medium | Multi-mode fiberglass |
Mechanical properties
| Tensile strength short-term/long-term | 10 N |
Mechanical data
| Insertion/withdrawal cycles | > 500 |
| Smallest bending radius | 30 mm |
Characteristics
| Attenuation | ≤ 0.3 dB (1300 nm) |
Ambient conditions
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -20 °C ... 70 °C |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Ambient temperature (assembly) | 0 °C ... 50 °C |
| Resistance to Oil | no |
Standards and Regulations
| Flame resistance | yes |
| Resistance to Oil | no |
