1421806
Official DistributorSKU
PHX1421806
MPN
FOC-OP12-OP12-GL02/115
Weight
7.125 kg

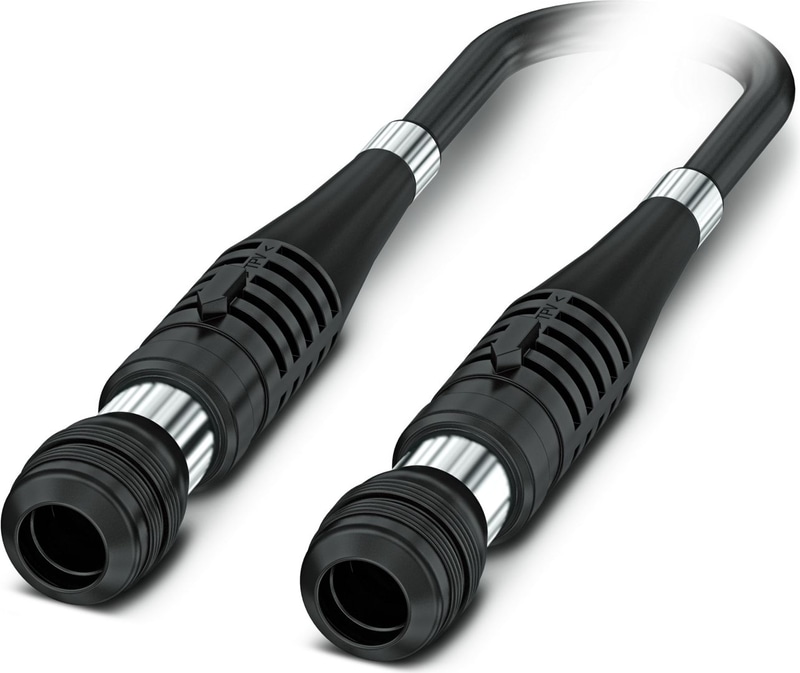

FOC-OP12-OP12-GL02/115 - Connecting cable
Double-end preassembled cable, type: circular connector, degree of protection: IP68, number of positions: 12
- Compact design with MT ferrule
- Push-pull interlocking
- Front release without special tool
Technical Specifications
Product properties
| Sensor Type | Ethernet |
| Number of Positions | 12 |
Electrical properties
| Attenuation | typ. 0.2 dB |
| Attenuation | max. 0.6 dB |
| Transmission medium | Multi-mode fiberglass |
Mechanical properties
| Tensile strength short-term/long-term | 500 N |
Material specifications
| Flammability rating according to UL 94 | V0 |
| Outer sheath, material | LSFH |
Connection 1
| Locking Type | Push Pull |
| Handle color | black |
| Insertion/withdrawal cycles | 500 (In the event of repeated cleaning) |
| Degree of Protection | IP68 (IEC 60529) |
| Degree of Protection | IP68 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (IEC 61300-2-22) |
Connection 2
| Locking Type | Push Pull |
| Handle color | black |
| Insertion/withdrawal cycles | 500 (In the event of repeated cleaning) |
| Degree of Protection | IP68 (IEC 60529) |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (IEC 61300-2-22) |
Cable/line
| Cable Length | 115 m |
| Cable weight | 55.00 kg/km |
| Cable Type | Multimode fiberglass |
| Cable Type | Zip cord, fiberglass |
| Cable abbreviation | 12-.../H(ZNG)H-...70 |
| External Cable Diameter | 7 mm |
| Outer sheath, material | LSFH |
| External sheath, color | black |
| Wire diameter incl. insulation | 250 µm |
| Individual wire diameter | 250 µm |
| Smallest bending radius, fixed installation | ≥ 70 mm |
| Tensile strength short-term/long-term | 500 N |
| Lateral pressure short term | 500.00 N/cm |
| Lateral pressure, long-term | 200.00 N/cm |
| Halogen-free | complying with IEC 60754-1/2 |
FO cable
| Number of fibers | 12 |
| Fiber | 62.5/125 µm OM1 |
| Fiber type | Multimode fiberglass 62.5/125 µm |
| Attenuation | typ. 0.15 dB |
| Transmission medium | Multi-mode fiberglass |
Ambient conditions
| Degree of Protection | IP68 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (IEC 61300-2-22) |
| Shock | 50g, in accordance with IEC 61300-2-9 |
Why Proax for Phoenix Contact 1421806?
Proax is an authorized distributor of Phoenix Contact 1421806 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
