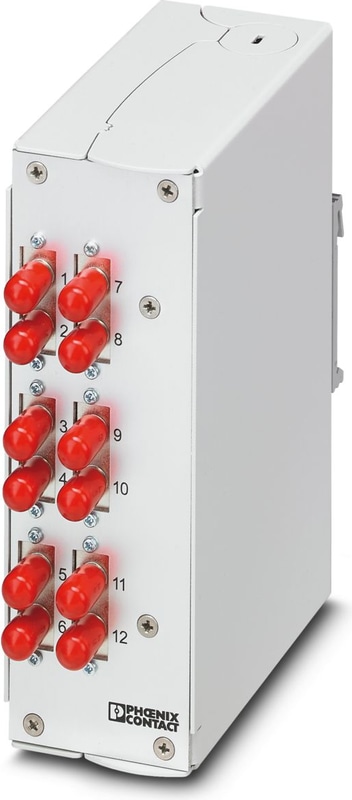

DIN rail module, 12x ST simplex, without pigtails and splice comb
1411903
Official DistributorSKU
PHX1411903
MPN
FOC-PP-SB-ST:6
Weight
0.972 kg
FOC-PP-SB-ST:6 - Splice box
DIN rail splice box, without pigtails, for 12x ST simplex
Technical Specifications
Notes
| Notes on operation | Pigtails and splice holders must also be mounted, cable gland not included |
| Notes on operation | Pigtails and splice holders must also be mounted, cable gland not included |
Product properties
| Housing type | Panel mounting base |
| Type | Rail-mountable module |
| Sensor Type | Ethernet |
| Connection profile | ST / BFOC (ST®) connectors |
| No. of cable outlets | 2 |
| Number of module slots | 12 |
| Number of slots | 12 |
| Protective cover | yes |
| Cable outlet | above and below |
Electrical properties
| Attenuation | >= 0.3 dB |
Connection technology
| Connection Method | ST |
Dimensions
| Width | 52 mm |
| Height | 150 mm |
| Depth | 110 mm |
Housing
| Housing width | 52 mm |
Mechanical characteristics
| Ferrule diameter | 2.50 mm |
Material specifications
| Color | light grey RAL 7035 |
| Flammability rating according to UL 94 | V0 |
| Housing Material | Sheet steel |
| Housing surface material | Powder-coated, gray |
Cable/line
| Cable Type | Fiberglass |
| Cable Type | for all common cable types |
| Halogen-free | yes |
| Flame resistance | yes |
FO cable
| Number of fibers | 12 |
| Fiber | GOF |
| Fiber type | GOF |
| Transmission medium | FO |
Mechanical data
| Insertion/withdrawal cycles | > 500 |
Characteristics
| Attenuation | >= 0.3 dB |
Ambient conditions
| Degree of Protection | IP20 |
| Degree of Protection | IP20 |
| Ambient Temperature (Operation) | -40 °C ... 85 °C (IEC 61300-2-22) |
| Ambient temperature (storage/transport) | -40 °C ... 85 °C |
| Ambient temperature (assembly) | -5 °C ... 55 °C |
Standards and Regulations
| Flame resistance | yes |
Mounting
| Mounting Type | DIN rail mounting |
Accessories
Plastic label, Card, white, unlabeled, can be labeled with: BLUEMARK ID COLOR, BLUEMARK ID, THERMOMARK PRIME, THERMOMARK CARD 2.0, THERMOMARK CARD, mounting type: adhesive, Number of individual labels: 189, text field height: 5 mm, text field width: 15 mm
Plastic label, Sheet, yellow, unlabeled, can be labeled with: BLUEMARK ID COLOR, BLUEMARK ID, BLUEMARK CLED, PLOTMARK, CMS-P1-PLOTTER, mounting type: adhesive, Number of individual labels: 10, text field height: 5 mm, text field width: 15 mm
