Official DistributorBy ABB
SKU
MPN
2CSF204401R1250
Weight
0.36 kg

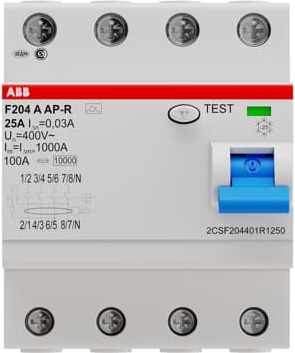

The RCCBs F200 series assures protection to people and installations against fault current to earth. A large offer for standard instantaneous and selective AC and A types is completed with some configurations for special applications. This product provides the best compromise between safety and continuity in the service, thanks to the resistance to unwanted trippings.
Technical Specifications
ABB EcoSolutions
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108469A3794 |
Technical
| Standards | IEC/EN 61008 |
| Standards | UL 1053 |
| Type of Residual Current | Type A |
| Rated voltage (UR) | 230/400 V |
| Rated Operational Voltage | 230 / 400 V AC |
| Rated Insulation Voltage (Ui) | 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 25 A |
| Rated Residual Current | 30 mA |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 1 kA |
| Maximum Surge Current | 3 kA |
| Leakage Current Type | A |
| Rated Frequency (f) | 50 … 60 Hz |
| Power Loss | at Rated Operating Conditions per Pole 1.3 W |
| Power supply connection | Arbitrary |
| Electrical Endurance | 10000 cycle |
| Number of Poles | 4 |
| Operating Characteristic | Instantaneous (APR High Immunity) |
| Position of Neutral Terminals | Right |
| Mounting Type | DIN-Rail |
| Options Provided | None |
| Accessories Available | Yes |
| Connecting Capacity | Busbar 10 mm² |
| Connecting Capacity | Rigid 25 ... 25 mm² |
| Connecting Capacity | Flexible 25 ... 25 mm² |
| Rated Cross-Section | 4 - Multi-Wired 0...25 mm² |
| Rated Cross-Section | 1 - Solid-Core 25...25 mm² |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | 480Y / 277 V AC |
| Short-circuit current rating (SCCR) | 30 mA |
Dimensions
| Width in Number of Modular Spacings | 4 |
| Product Net Width | 0.070 m |
| Product Net Height | 0.085 m |
| Product Net Depth / Length | 0.069 m |
| Product Net Weight | 0.360 kg |
| Built-In Depth (t2) | 69 mm |
Installation
| Instructions and Manuals | 9AKK107991A6127 |
Why Proax for ABB F204 A-25/0.03 AP-R?
Proax is an authorized distributor of ABB F204 A-25/0.03 AP-R and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | F204A25003APR |
| Pack Size | 1 |
