Official DistributorBy ABB
SKU
MPN
2CSF202199R1250
Weight
0.2 kg

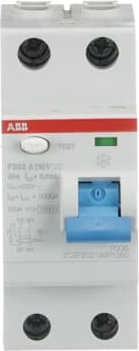

The RCCBs F200 series assures protection against the effects of sinusoidal alternating and direct pulsating earth fault currents, protection, against indirects contacts and additional protection against direct contacts. Applications: residential, commercial, industrial. This particular serias has the minimum operating voltage of test buttom 0f 110V and it is suitable for application at 230V.
Technical Specifications
ABB EcoSolutions
| ABB EcoSolutions | Yes |
| EcoSolutions Profile | 9AKK108469A3794 |
Technical
| Standards | IEC 61008 |
| Standards | UL 1053 |
| Type of Residual Current | Type A |
| Rated voltage (UR) | 230 V |
| Rated Operational Voltage | 230 V |
| Rated Insulation Voltage (Ui) | 500 V |
| Test Voltage (Ut) | 110 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV |
| Input Voltage Type | AC |
| Rated Current (In) | 25 A |
| Rated Residual Current | 30 mA |
| Rated Conditional Short-Circuit Current (Inc) | 10 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 1 kA |
| Leakage Current Type | A |
| Rated Frequency (f) | 50 … 60 Hz |
| Power Loss | at Rated Operating Conditions per Pole 1.0 W |
| Power supply connection | Arbitrary |
| Electrical Endurance | 10000 cycle |
| Number of Poles | 2 |
| Operating Characteristic | Instantaneous |
| Mounting Type | DIN-Rail |
| Options Provided | None, Suitable for 110V applications |
| Accessories Available | Yes |
| Connecting Capacity | Busbar 10 mm² |
| Connecting Capacity | Rigid 25 ... 25 mm² |
| Connecting Capacity | Flexible 25 ... 25 mm² |
| Rated Cross-Section | 4 - Multi-Wired 0...25 mm² |
| Rated Cross-Section | 1 - Solid-Core 25...25 mm² |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | 277 V AC |
| Short-circuit current rating (SCCR) | 30 mA |
Dimensions
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 0.035 m |
| Product Net Height | 0.085 m |
| Product Net Depth / Length | 0.069 m |
| Product Net Weight | 0.200 kg |
| Built-In Depth (t2) | 69 mm |
Installation
| Instructions and Manuals | 9AKK107991A6127 |
Why Proax for ABB F202 A-25/0.03 110V?
Proax is an authorized distributor of ABB F202 A-25/0.03 110V and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | F202A25003110V |
