Technical Specifications
Technical
| Standards | IEC/EN 60947-1 |
| Suitable for | S200 |
| Suitable for | F200 |
| Suitable for | DDA200 |
| Suitable for Product Class | 1-pole devices (e.g. S201-SD201) |
| Suitable for Product Class | Residual Current Circuit Breakers with Overcurrent Protection |
| Rated Operational Voltage | 230 / 400 V AC |
| Rated Operational Voltage | Maximum 690 V |
| Rated Short-time Withstand Current Low Voltage (Icw) | 25 kA |
| Rated Uninterrupted Current (Iu) | 120 A |
| Rated Frequency (f) | 50 / 60 Hz |
| Rated Frequency (f) | DC |
| Pitch | 17.5 |
| Number of Poles | 5 |
| Number of phases | 1 |
| Number of Mountable Devices | 5 |
| Number of Terminals (Nterm) | 5 |
| Overvoltage category | III |

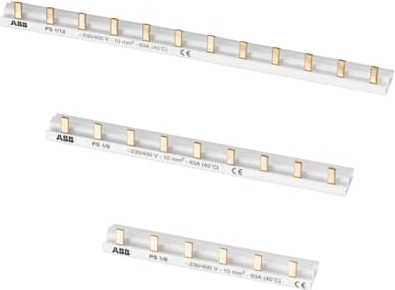

| Accessory Type | Busbar |
| Connection Type | Pin |
| Housing Material | Light grey, RAL 7035 |
| Mounting Position | any |
| RAL Number | RAL 7035 - Light Grey |
| Color | grey |
| Rated Cross-Section | 30 mm² |
Dimensions
| Width in Number of Modular Spacings | 5 |
| Product Net Width | 22.2 mm |
| Product Net Height | 20 mm |
| Product Net Depth / Length | 84 mm |
| Product Net Weight | 0.032 kg |
Installation
| Instructions and Manuals | 2CSC400002D0208 |
Why Proax for ABB PS1/5/30?
Proax is an authorized distributor of ABB PS1/5/30 and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | PS1530 |
| Pack Size | 1 |
