Official DistributorSKU
MPN
CF CRIMPHANDY 0,5
Weight
1.883 kg
Series CF-CRIMPHANDY

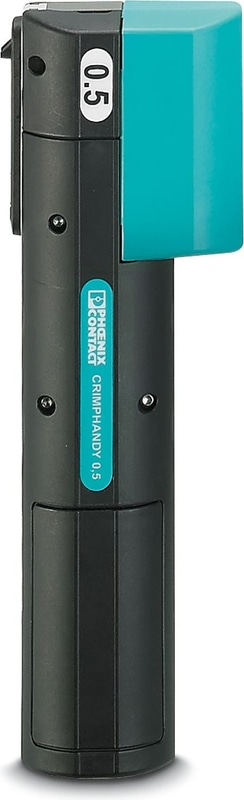

CF CRIMPHANDY 0,5 - Crimping tool, electric
Mobile automatic stripping and crimping device, service tool, replacement part (waste guide plate), cutting tool (CUTFOX 12), on-tape ferrules
- Consistently optimum results thanks to automatic monitoring functions
- Unlimited mobile use thanks to battery operation and magazine
- The product innovation for switchgear manufacturing: the Crimphandy. You can strip and crimp your conductors in under two seconds using this portable handheld device. This represents a time saving of 75%.
Documents
Technical Specifications
Product properties
| Compression | Square crimp |
| Conductor type | PVC H05V-K |
| Insertion length minimum | 32 mm |
| Product property | Portable automatic stripping and crimping device |
Electrical properties
| Frequency Range | 60 Hz |
| Power consumption | 20 W |
Supply
| Supply Voltage Range | 7.4 V DC |
Conductor connection
| Cross section range, metric | 0.5 mm² ... 0.5 mm² |
Dimensions
| Width | 43 mm |
| Height | 70 mm |
| Length | 205 mm |
| Conductor diameter range | 1.7 mm ... 2.4 mm |
Material specifications
| Color | black |
Why Proax for Phoenix Contact 1212463?
Proax is an authorized distributor of Phoenix Contact 1212463 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
