Official DistributorSKU
MPN
CF CRIMPHANDY 1,5
Weight
1.883 kg
Series CF-CRIMPHANDY

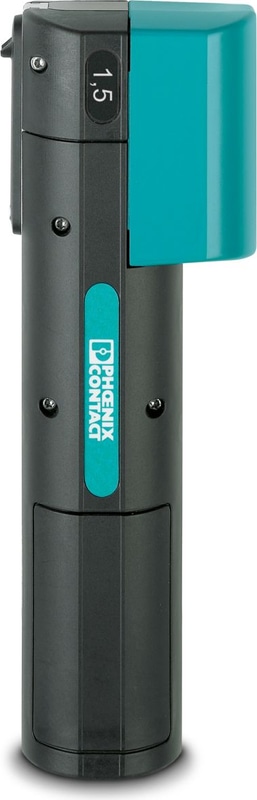

CF CRIMPHANDY 1,5 - Electrical crimping tool
Mobile handheld device, battery-powered, for processing on-tape ferrules 1.5 mm2 with functional end, suitable for PVC insulated conductors (H07V-K), incl. battery, charger, CUTFOX 12 cable cutter, waste guide plate 2, service tool for error correction, and one strip of ferrules 1.5 mm2, packed in a robust case.
- Consistently optimum results thanks to automatic monitoring functions
- Unlimited mobile use thanks to battery operation and magazine
- The product innovation for switchgear manufacturing: the Crimphandy. You can strip and crimp your conductors in under two seconds using this portable handheld device. This represents a time saving of 75%.
Technical Specifications
Product properties
| Compression | Square crimp |
| Conductor type | PVC H07V-K |
| Insertion length minimum | 32 mm |
Electrical properties
| Frequency Range | 60 Hz |
| Power consumption | 20 W |
Supply
| Supply Voltage Range | 7.4 V DC |
Conductor connection
| Cross section range, metric | 1.5 mm² ... 1.5 mm² |
| Stripping length | 10.8 mm |
Dimensions
| Width | 43 mm |
| Height | 70 mm |
| Length | 205 mm |
| Conductor diameter range | 2.4 mm ... 3.1 mm |
Material specifications
| Color | black |
Accessories
AI 1,5-8 BK-S - Band ferrules, 1.5 mm2, sleeve length 8 mm, with plastic collar, according to DIN 46228-4, color: black, equipped with function end for safe and convenient processing with the Crimphandy, 20 strips with 50 sleeves per strip.
AI 1,5-8 RD-S - Taped ferrules, 1.5 mm2, sleeve length: 8 mm, with plastic collars, according to DIN 46228-4, special color: red, with function end for safe and convenient processing with the Crimphandy, 20 strips each with 50 sleeves per strip.
Why Proax for Phoenix Contact 1212466?
Proax is an authorized distributor of Phoenix Contact 1212466 and one of Phoenix Contact's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
