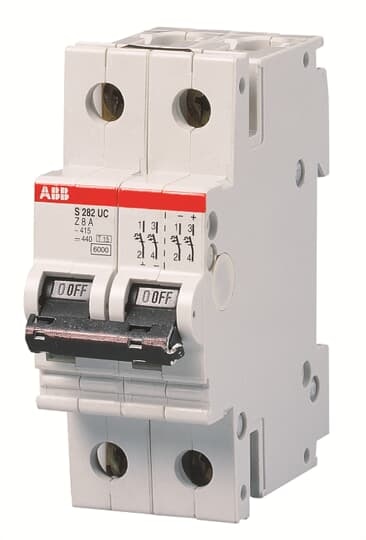

System pro M S280UC is a universal current miniature circuit breaker that provides current limitation. With its high DC voltage rating it is a excellent solution for DC applications in photovoltaic’s, telecommunication, traction and industrial applications.They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,K,Z), configurations (1P,2P,3P,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S280UC comply with IEC/EN 60947-2, UL1077 and CSA 22.2 No. 235, allowing the use for commercial and industrial applications in direct current circuits for voltages up to 220 V DC 1 pole and 440 V DC 2, 3 and 4 poles.
Technical Specifications
Technical
| Standards | CSA 22.2 No. 235, IEC/EN 60947-2, UL 1077 |
| Tripping characteristic | K |
| Rated Operational Voltage | acc. to IEC 60898-1 440 V DC |
| Operational Voltage | Maximum (Incl. Tolerance) 440 V AC / 484 V DC, Minimum 12 V AC / 12 V DC |
| Rated Insulation Voltage (Ui) | acc. to IEC/EN 60664-1 500 V |
| Rated Impulse Withstand Voltage (Uimp) | 4 kV, at 2000 m 5 kV, at Sea Level 6.2 kV |
| Dielectric Test Voltage | 50/60 Hz, 1 min: 2 kV |
| Input Voltage Type | AC/DC |
| Rated Current (In) | 16 A |
| Rated Short-Circuit Capacity | (AC) 6 kA, (DC) 6 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | 6 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | 6 kA |
| Rated Frequency (f) | 50 / 60 Hz |
| Contact Position Indication | ON / OFF |
| Electrical Endurance | 10000 AC cycle |
| Mechanical Endurance | 20000 cycle |
| Number of Poles | 2 |
| Overvoltage category | III |
| Product Range | S280UC |
| Tightening torque | 2.5 N·m |
| Actuator Type | Toggle |
| Screw Terminal Type | Cable Clamp |
| Actuator Marking | I / O |
| Actuator Material | Insulation Group II, Black, Sealable |
| Housing Material | Insulation Group I, RAL 7035 |
| Mounting on DIN Rail | TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715, TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
| Mounting Position | any |
| Recommended Screw Driver | Pozidriv 2 |
| Accessories Available | Yes |
| Remarks | Please note polarity of device |
| Connecting Capacity | Busbar 16 mm², Flexible with Ferrule 0.75 ... 16 mm², Flexible 0.75 ... 16 mm², Rigid 0.75 ... 25 mm², Stranded 0.75 ... 25 mm² |
| Installation Size | acc. to DIN 43880 1 |
| Terminal Type | Screw Terminals |
Environmental
| Ambient Air Temperature | Operation -25 ... +55 °C, Storage -40 ... +70 °C |
| Reference Ambient Air Temperature | 20 °C |
| Degree of Protection | IP20, Enclosure with Cover IP40 |
| Pollution degree | 2 |
| Environmental Conditions | 28 cycles, with 55 °C / 90-96 %, and 25 °C / 95-100 % |
| Resistance to Vibrations acc. to IEC 60068-2-6 | 5g, 20 cycles at 5 ... 150 ... 5 Hz with load 0.8 In |
| Resistance to Shock acc. to IEC 60068-2-27 | 30g 3 shocks 11 ms |
| RoHS Status | Following EU Directive 2011/65/EU |
Technical UL/CSA
| Maximum Operating Voltage UL/CSA | 500 V DC / 480Y V AC |
| Interrupting Rating acc. to UL1077 | 4.5 kA |
| Connecting Capacity UL/CSA | Conductor 18-4 AWG |
| Tightening Torque UL/CSA | Main Circuit 17.5 in·lb |
Dimensions
| Width in Number of Modular Spacings | 2 |
| Product Net Width | 35 mm |
| Product Net Height | 90 mm |
| Product Net Depth / Length | 69 mm |
| Product Net Weight | 0.26 kg |
| Size | 2 modules |
| Built-In Depth (t2) | 68 mm |
