Official DistributorBy ABB
SKU
MPN
1SDA070472R1
Weight
4.395 kg

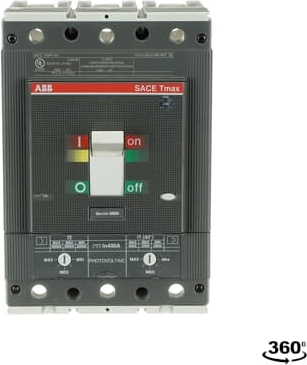

C.BREAKER TMAX T5N/PV 400 UL/CSA 1000V DC FIXED THREE-POLE WITH FRONT TERMINALS AND THERMOMAGNETIC RELEASE TMA R 400 I3=2000...4000 A
Technical Specifications
Dimensions
| Product Net Width | 140 mm |
| Product Net Height | 205 mm |
| Product Net Depth / Length | 103.5 mm |
| Product Net Weight | 4.8 kg |
Additional Information
| Mechanical Durability | 20000 cycle |
| Mechanical Durability | 120 cycles per hour |
| Number of Poles | 3 |
| Product Main Type | SACE Tmax T |
| Product type | Automatic Circuit Breaker |
| Rated Current (In) | 400 A |
| Rated Impulse Withstand Voltage (Uimp) | 8 kV |
| Rated Insulation Voltage (Ui) | 1150 V |
| Rated Operational Voltage | 1000 V DC |
| Rated Uninterrupted Current (Iu) | 400 A |
| Release | TMA |
| Release Type | TM |
| Short-Circuit Performance Level | N |
| Standards | UL |
| Sub-type | T5 |
| Suitable for | T5 |
| Suitable for Product Class | Moulded Case Circuit Breakers |
| Terminal Connection Type | Fixed Circuit-Breakers |
| Terminal Connection Type | Front |
| Version | F |
Technical UL/CSA
| Interrupting Rating acc. to UL489 | (240 V AC) 65 kA |
| Interrupting Rating acc. to UL489 | (480 V AC) 25 kA |
| Interrupting Rating acc. to UL489 | (600 V AC) 18 kA |
| Interrupting Rating acc. to UL489 | (500 V DC) 2 Poles in Series 25 kA |
| Interrupting Rating acc. to UL489 | (600 V DC) 3 Poles in Series 16 kA |
Why Proax for ABB T5N/PV 400 UL TMA 400-4000 3p FF 1000VDC?
Proax is an authorized distributor of ABB T5N/PV 400 UL TMA 400-4000 3p FF 1000VDC and one of ABB's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | T5NPV400ULTMA40040003pFF1000VDC |
| Pack Size | 1 |
