Official DistributorBy ABB
SKU
MPN
1SDA072547R1
Weight
68.481 kg

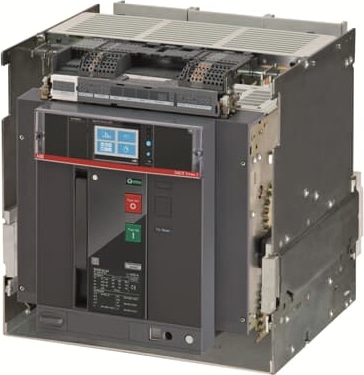

MOVING PART FOR C.BREAKER SACE EMAX2 E4.2N 4000 THREE-POLE WITH SOLID-STATE RELEASE IN AC EKIP/G/TOUCH-LSIG R 4000 FITTED WITH: 4 AUXILIARY CONTACT AND C.BREAKER IN POSITION OPEN-CLOSED
Technical Specifications
ABB EcoSolutions
| ABB EcoSolutions | Yes |
Dimensions
| Product Net Width | 425 mm |
| Product Net Height | 425 mm |
| Product Net Depth / Length | 383 mm |
| Product Net Weight | 60 kg |
Additional Information
| Current Type | AC |
| Electrical Durability | Ue =< 440 V 5000 cycle |
| Electrical Durability | Ue = 500 ... 690 V 4000 cycle |
| Electrical Durability | 20 cycles per hour |
| Mechanical Durability | 15000 cycle |
| Mechanical Durability | 60 cycles per hour |
| Number of Poles | 3 |
| Power Loss | 900 W |
| Product Main Type | SACE Emax 2 |
| Product type | Air Circuit Breaker |
| Rated Service Short-Circuit Breaking Capacity, in % of Icu (Ics) | 100 % |
| Rated Current (In) | 4000 A |
| Rated voltage (UR) | 690 V |
| Rated Impulse Withstand Voltage (Uimp) | acc. to IEC 60947-2 12 kV |
| Rated Insulation Voltage (Ui) | AC 1000 V |
| Rated Operational Voltage | 690 V AC |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (220 V AC) 66 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (230 V AC) 66 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (380 V AC) 66 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (400 V AC) 66 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (415 V AC) 66 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (440 V AC) 66 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (500 V AC) 66 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (660 V AC) 66 kA |
| Rated Service Short-Circuit Breaking Capacity (Ics) | (690 V AC) 66 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 1 s 66 kA |
| Rated Short-time Withstand Current Low Voltage (Icw) | for 3 s 50 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (400 V AC) 66 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (415 V AC) 66 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (440 V AC) 66 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (500 V AC) 66 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (525 V AC) 66 kA |
| Rated Ultimate Short-Circuit Breaking Capacity (Icu) | (690 V AC) 66 kA |
| Rated Uninterrupted Current (Iu) | 4000 A |
| Release | Ekip G Touch LSIG |
| Release Type | EL |
| Short-Circuit Performance Level | N |
| Standards | IEC |
| Sub-type | E4.2 |
| Version | W |
