9635700
Official DistributorBy Rittal
SKU
RIT9635700
Weight
0.576 kg

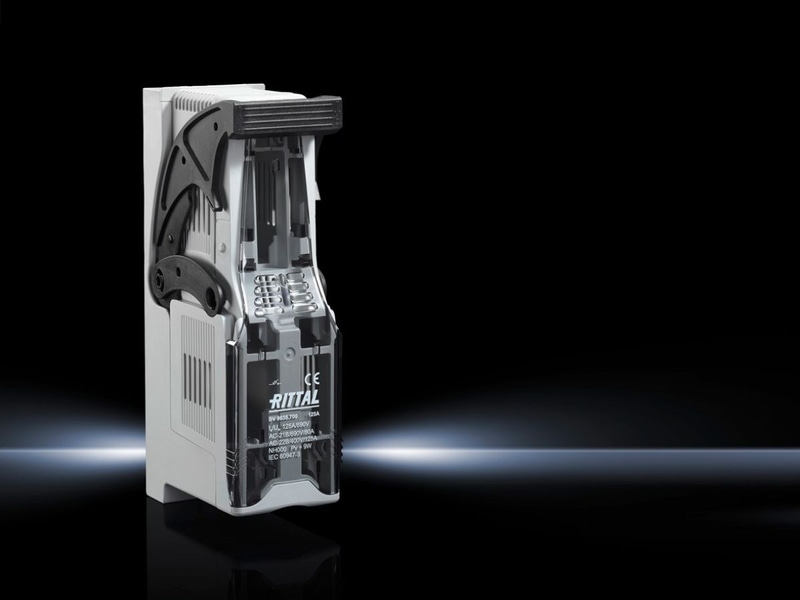

LV HRC fused interrupter, size 000, 690 V (RiLine Compact)
Technical Specifications
Dimensions
| Width | 49.5 mm |
| Height | 174.5 mm |
| Depth | 96 mm |
Material
| Contact tracks | Silver-plated hard copper |
| Function principle | To protect connected equipment |
| Color | RAL 7035 |
| Test specification | IEC 60 947-3 |
| For NH size | 000 |
| Rated operating current max. | 125 A |
| Rated operating voltage | 440 V (DC), 3~ |
| Number of Poles | 3-pole |
| Cable outlet | Top/bottom |
| Type of connection (electrical) | Box terminal |
| Connection for round conductor cross-sections | 2.5 ‐ 50 mm² |
| Clamping area for laminated copper bars (W x H) | 10 x 10 mm |
| Weight/packaging unit | 0.576 kg |
| Copper weight (kg per piece) | 0.145 |
| Customs tariff number | 85369095 |
| EAN | 4028177937604 |
| ETIM 7.0 | EC001040 |
| ECLASS 8.0 | 27371401 |
Why Proax for Rittal 9635700?
Proax is an authorized distributor of Rittal 9635700 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
