Name: 9635320
Brand: Rittal
SKU: RIT9635320
Price: 91.8100 CAD
Availability: InStock

Official Distributor

By Rittal

SKU

Weight

0.512 kg

Series Component Adapters 3-pole

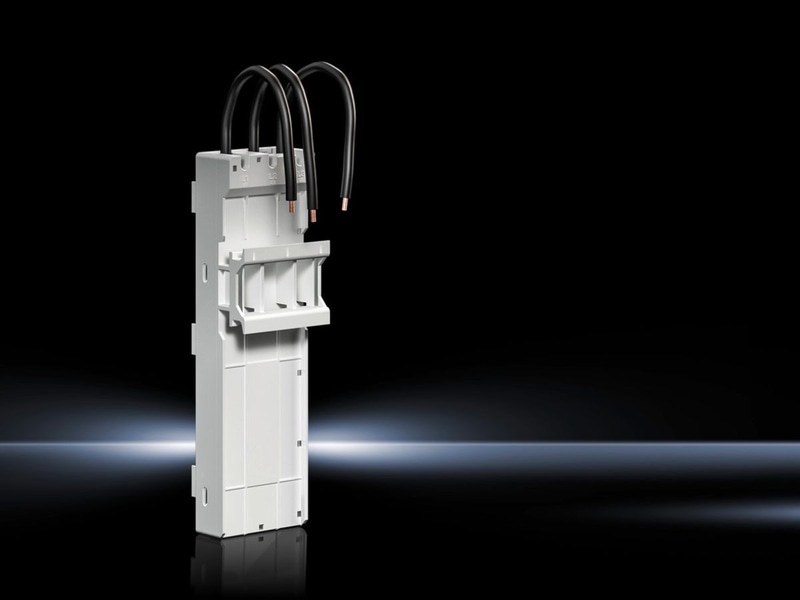

SV Component adaptor (Basic), 32 A, 690 V (AC), 600 V (DC), 3-pole, connection cable AWG 10 (L: 100 mm), WH: 45x160 mm

Component Adapters 3-pole

For assembly of switchgear and protective devices. Versions with integral fuse holder, fixed support rail (basic) or adjustable support rail (comfort).

Dimensions

Width	45 mm
Height	160 mm
Depth	34.5 mm

Version	Basic
Function principle	For mechanical attachment and direct contacting of electrical equipment on the board
Material	Polyamide Fire behavior corresponding to UL 94
Color	RAL 7035
Note	The technical data may vary for UL applications.
Rated current max.	32 A
Rated operating voltage	600 V (DC), 3~
Number of Poles	3-pole
Electrical UL ratings	Rated operating voltage (max.) UL: 600 V AC
Connection cables (AWG)	AWG 10
Length of connection cable	100 mm
Support rails Qty/height	1 / 10 mm
Support rail type	Fixed
Packaging unit	4 pc(s).
Weight/packaging unit	0.512 kg
Copper weight (kg per piece)	0.044
Customs tariff number	85369095
EAN	4028177817364
ETIM 7.0	EC001531
ECLASS 8.0	27370304
